Studying the Effects of 'Microstrain' on Battery Materials

Structural changes shown at different temperatures enlarge

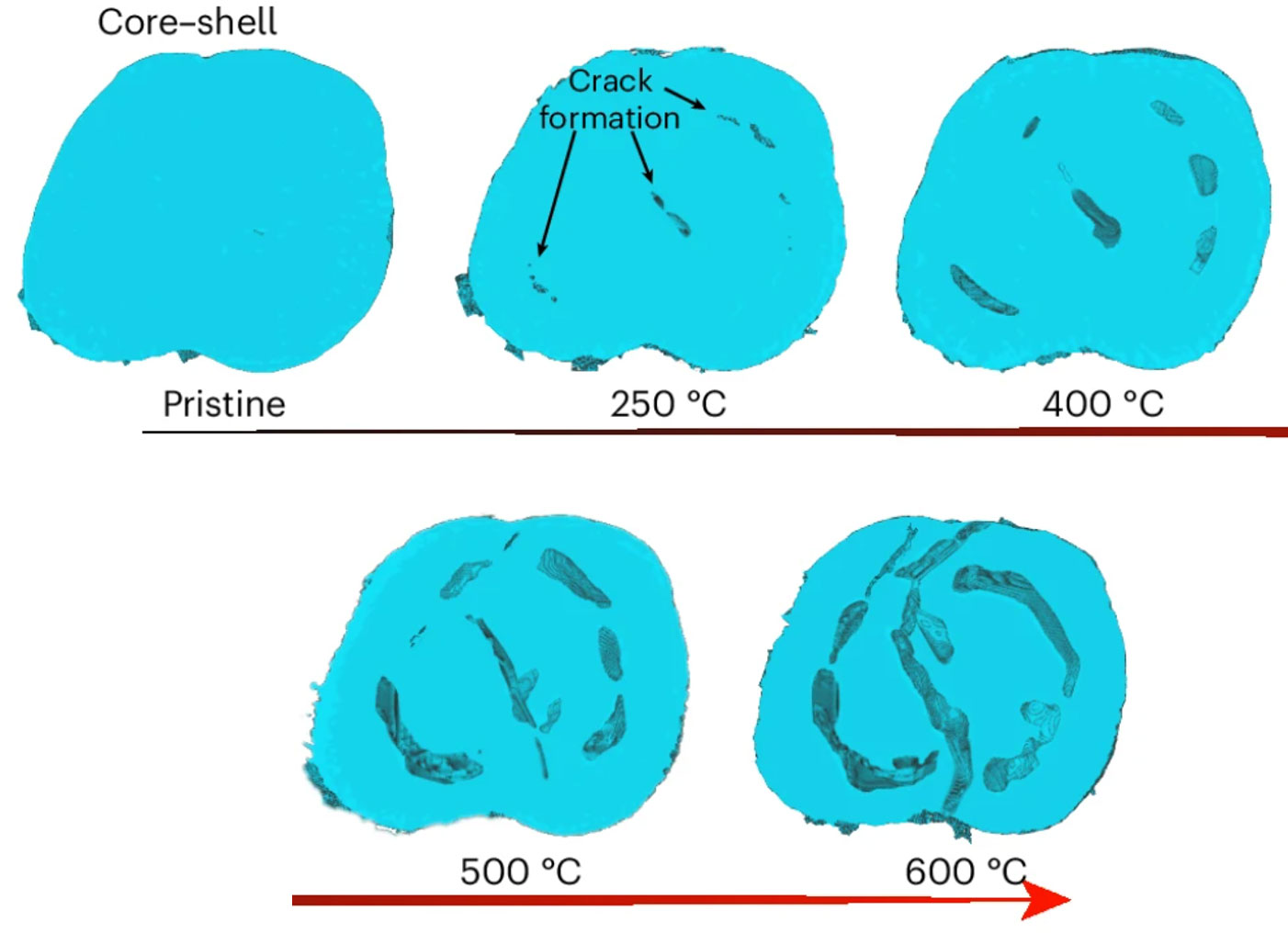

In situ 3D TXM-XANES results of the particles during calcination, tracking real-time bulk structural changes.

The Science

Researchers uncover insight into how structural defects form and affect the performance of two battery cathode materials.

The Impact

Understanding the "microstrain" caused by these defects could lead to ways to craft more stable battery materials.

Summary

One of the roadblocks to more energy-dense, longer-lasting battery materials are the structural defects that tend to occur during the synthesis of those materials. These defects produce an overall instability known as microstrain, which has been identified as playing a critical role in the degradation of layered transition metal oxides, a class of cathode materials used in alkali-ion batteries, such as sodium-ion and lithium-ion.

To be able to design and create battery materials that are defect-free, researchers need to understand much more about the origin and effects of microstrain. As a step toward this goal, researchers from the U.S. Department of Energy's (DOE) Brookhaven National Laboratory and Argonne National Laboratory have studied a battery cathode material during synthesis, watching the process in real time. To do this, they used X-ray and microscopy techniques at Argonne's Advanced Photon Source (APS) and Brookhaven's National Synchrotron Light Source II (NSLS-II). Both APS and NSLS-II are DOE Office of Science user facilities.

The materials studied here are two types of a sodium layered oxide, which is grown via the use of a precursor material, a layered transition metal hydroxide. As part of the growth process, secondary particles form and then undergo calcination. At NSLS-II's Full Field X-ray Imaging (FXI) beamline, the researchers studied the particles using a full-field 3D transmission X-ray microscope (TXM) in X-ray absorption near-edge structure (XANES) mode, a technique that combines two X-ray approaches to yield 3D information on the chemical states of a sample.

TXM-XANES allowed the group to see structural and chemical changes that occurred under realistic synthesis temperatures and other conditions. From the data they collected at both facilities, the group learned that as the material "grows," the spatial distribution of transition metals within the particles strongly guides several aspects of the synthesis process, including phase transformation at the nanoscale, local charge distribution, and the accumulation of microstrain. This dominance of the transition metals was another result that the researchers did not expect to see. Together, these insights are a critical step toward a better synthesis route for sodium layered oxides that could result in materials with reduced microstrain and defects, and thus significantly improved structural stability.
