Charm Quarks Offer Clues to Confinement

Tracking particles containing charm quarks offers insight into how quarks combine

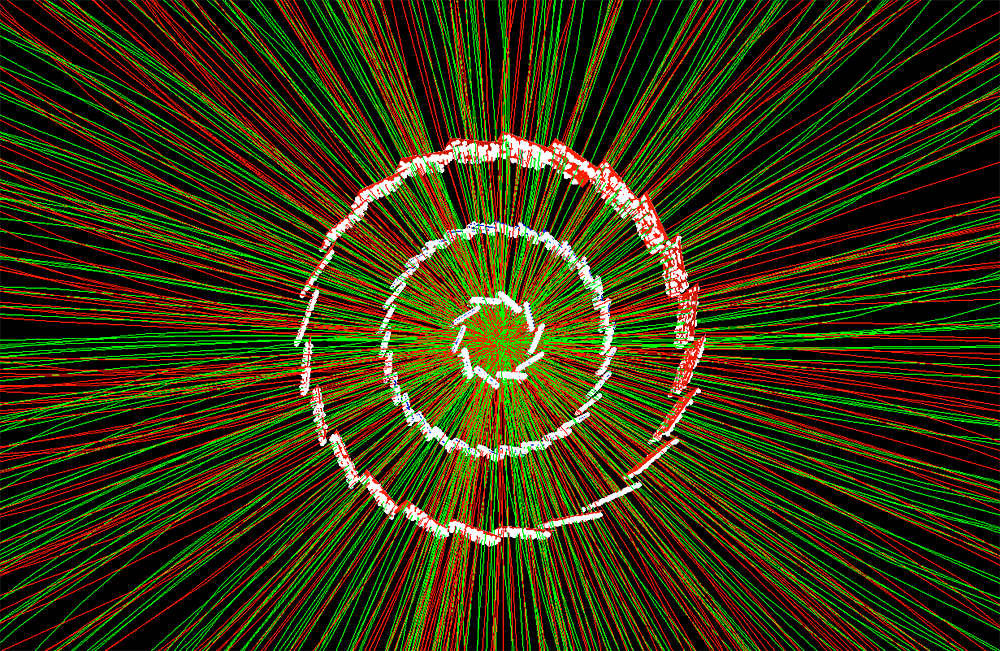

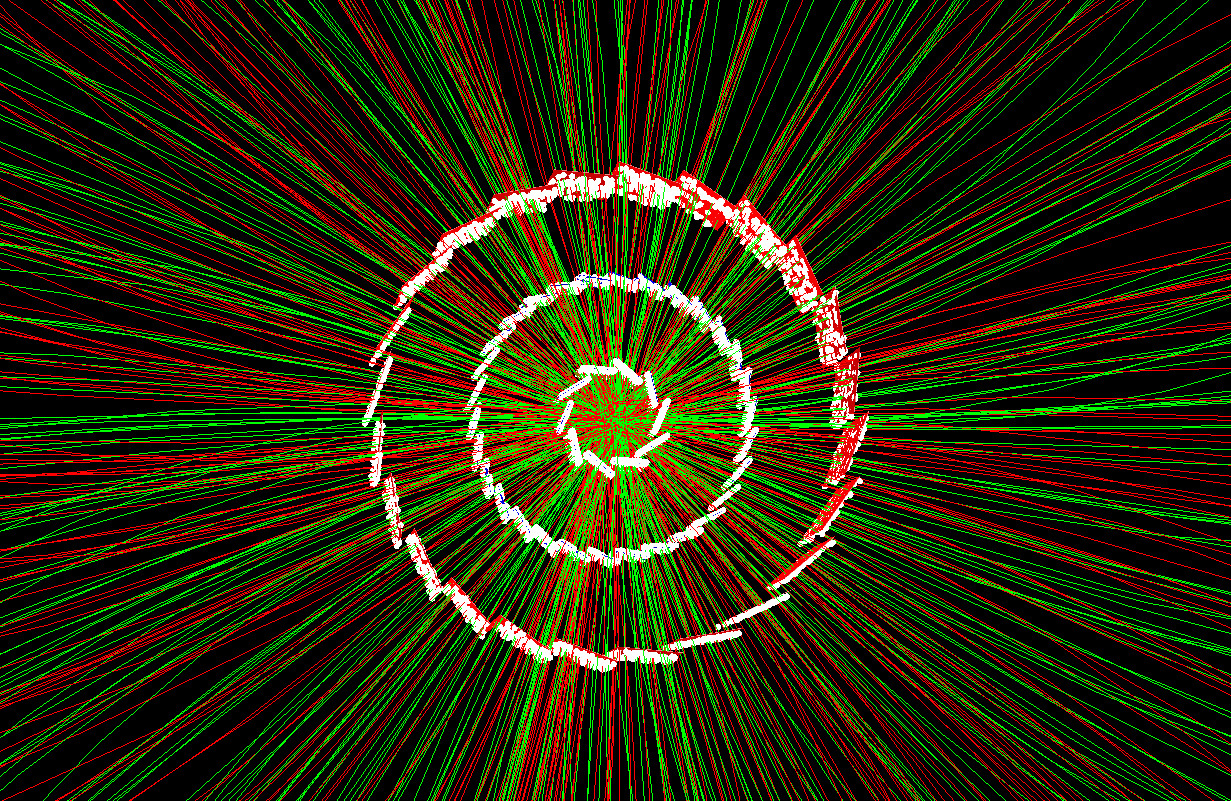

A gold–gold collision recorded by the Heavy Flavor Tracker (HFT) component of the STAR detecto enlarge

A gold–gold collision recorded by the Heavy Flavor Tracker (HFT) component of the STAR detector at the Relativistic Heavy Ion Collider (RHIC). The white points show "hits" recorded by particles emerging from the collision as they strike sensors in three layers of the HFT. Scientists use the hits to reconstruct charged particle tracks (red and green lines) to measure the relative abundance of certain kinds of particles emerging from the collision—in this case, charmed lambda particles. (Image courtesy of STAR Collaboration)

Nuclear physicists are trying to understand how particles called quarks and gluons combine to form hadrons, composite particles made of two or three quarks. To study this process, called hadronization, a team of nuclear physicists used the STAR detector at the Relativistic Heavy Ion Collider—a U.S. Department of Energy Office of Science user facility for nuclear physics research at DOE’s Brookhaven National Laboratory—to measure the relative abundance of certain two- and three-quark hadrons created in energetic collisions of gold nuclei. The collisions momentarily “melt” the boundaries between the individual protons and neutrons that make up the gold nuclei so scientists can study how their inner building blocks, the quarks and gluons, recombine.

The STAR physicists studied particles containing heavy “charm” quarks, which are easier to track than lighter particles, to see how the measurements matched up with predictions from different explanations of hadronization. The measurements, published in Physical Review Letters, revealed many more three-quark hadrons than would have been expected by a widely accepted explanation of hadronization known as fragmentation. The results suggest that, instead, quarks in the dense particle soup created at RHIC recombine more directly through a mechanism known as coalescence.

“Hadrons made of two or three quarks are the building blocks of visible matter in our world—including the protons and neutrons that make up the nuclei of atoms. But we never see their inner building blocks—the quarks and gluons—as free objects because quarks are always ‘confined’ within composite particles,” said Xin Dong, a physicist at DOE’s Lawrence Berkeley National Laboratory (LBNL) and a leader of this analysis for the STAR Collaboration.

RHIC’s heavy ion collisions create a state of matter known as quark-gluon plasma (QGP), a hot particle soup that mimics what the early universe was like, in which quarks are “deconfined,” or set free, from their ordinary bounds within composite particles called hadrons.

“By tracking the particles that stream out of RHIC’s collisions we can explore the mechanism of hadronization and how the strong nuclear force keeps quarks confined in ordinary matter,” said Helen Caines, a professor at Yale University and co-spokesperson of the STAR Collaboration.

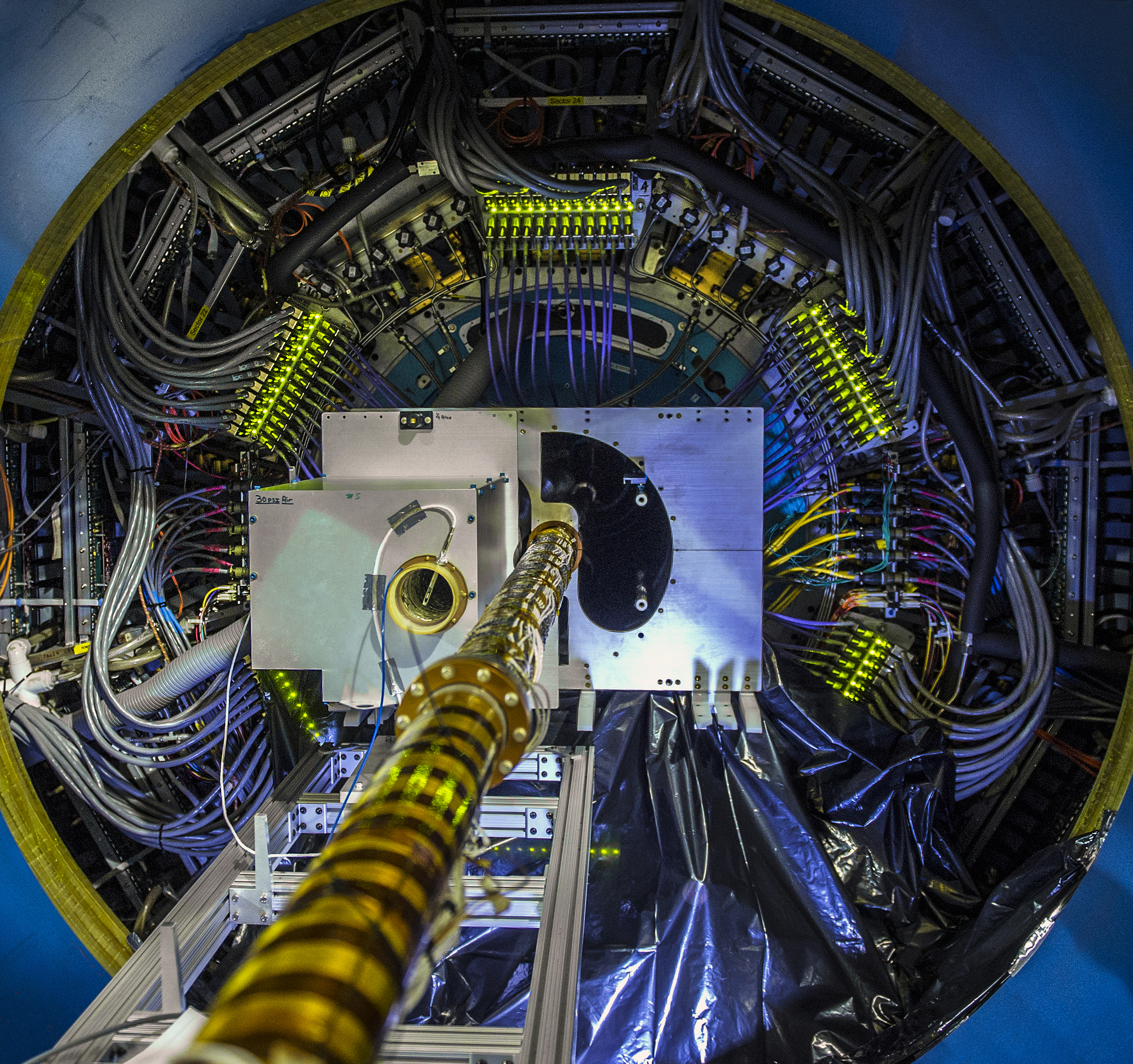

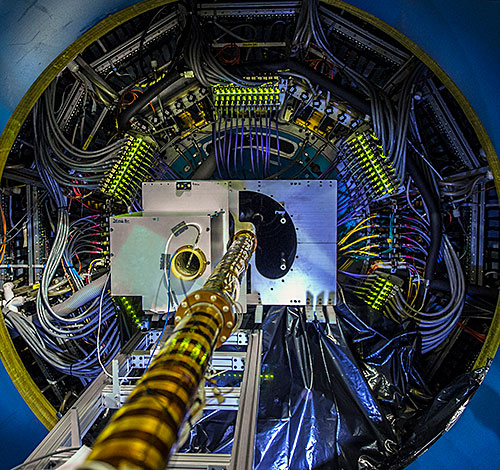

The central portion of the Heavy Flavor Tracker (HFT) enlarge

The central portion of the Heavy Flavor Tracker (HFT) being installed at the Relativistic Heavy Ion Collider's STAR detector. The HFT tracks particles made of "charm" and "beauty" quarks, rare varieties (or "flavors") that are more massive than the lighter "up" and "down" quarks that make up the protons and neutrons of ordinary matter.

The STAR physicists measured charmed hadrons (hadrons containing heavy “charm” quarks) using the high-resolution Heavy Flavor Tracker (HFT) installed at the center of the 4-meter-wide Time Projection Chamber of RHIC’s STAR detector.

“The HFT ‘zooms in’ on particles such as the three-quark charmed lambda, which decays less than 0.1 millimeter from the center of the collision,” said Brookhaven Lab physicist Flemming Videbaek, the STAR HFT project manager.

Combining “hits” in the HFT with measurements of the decay products farther out in the STAR detector, physicists can count up how many three-quark charmed lambdas vs. two-quark charmed “D-zero” (D0) particles emerge from the QGP.

“We used a supervised machine learning technique to suppress the large background for the detection of charmed lambda particles,” said Sooraj Radhakrishnann, a postdoctoral fellow from Kent State University and Berkeley Lab who conducted the main analysis.

The results from STAR counted charmed lambdas and D0 particles in nearly equal numbers. That was far more charmed lambdas than had been predicted by a well-accepted mechanism of hadronization known as fragmentation.

“Fragmentation accurately describes many experimental results from high-energy particle physics experiments,” Dong said. The mechanism involves energetic quarks or gluons “exciting” the vacuum and “splitting” to form quark-antiquark pairs. As the splitting process progresses, it creates an abundant pool of quarks and antiquarks that can combine to form two- and three-quark hadrons, he explained.

But the fragmentation explanation predicts that fewer charmed lambda particles than D0 particles should emerge from heavy ion collisions in the momentum range measured at RHIC. STAR’s observation of “charmed baryon enhancement” (resulting in nearly equal numbers of charmed lambda and D0 particles) supports an alternate mechanism for hadronization. Known as coalescence, this explanation posits that the density of RHIC’s QGP particle soup brings quarks into close enough proximity to allow them to recombine into composite particles directly.

“The STAR results suggest that coalescence plays an important role in charm quark hadronization in heavy-ion collisions, at least in the momentum range measured in this experiment,” Dong said.

Understanding the mechanism of coalescence may offer new insights that help reveal how quarks and gluons become confined within hadrons to build up the structure of atomic nuclei—the heart of the matter that makes up everything visible in our world.
