Engineering Atomic Interfaces for New Electronics

February 24, 2011

The following news release was issued by the University of Wisconsin-Madison about the exotic physical behavior of artificially designed and synthesized interfaces between oxides — materials that contain oxygen and usually are unable to conduct electricity. At Brookhaven National Laboratory’s Center for Functional Nanomaterials and the Department of Condensed Matter Physics and Materials Science, scientists Yimei Zhu and Dong Su simultaneously examined the crystal structure and electron structure of the interfaces in an atom-by-atom fashion based on ultra-high-resolution imaging and spectroscopy. These studies helped the multi-institutional team discover that the addition of a single layer of atoms at an oxide interface can drastically alter the conductivity of the material, from highly conductive to completely insulating, depending on the element used. In particular, Brookhaven scientists played a key role in revealing the origin of an electron “gas” that forms at the interface. The finding is significant since the crystal structure at and across the interface resembles that of a wide range of functional oxides such as high-temperature superconductors and materials used in magnetoelectronic applications. The insight gained could help researchers create faster, smaller, and smarter electronic devices. For more information about Brookhaven’s role, contact Kendra Snyder, 631-344-8191, or Peter Genzer, 631-344-3174.

enlarge

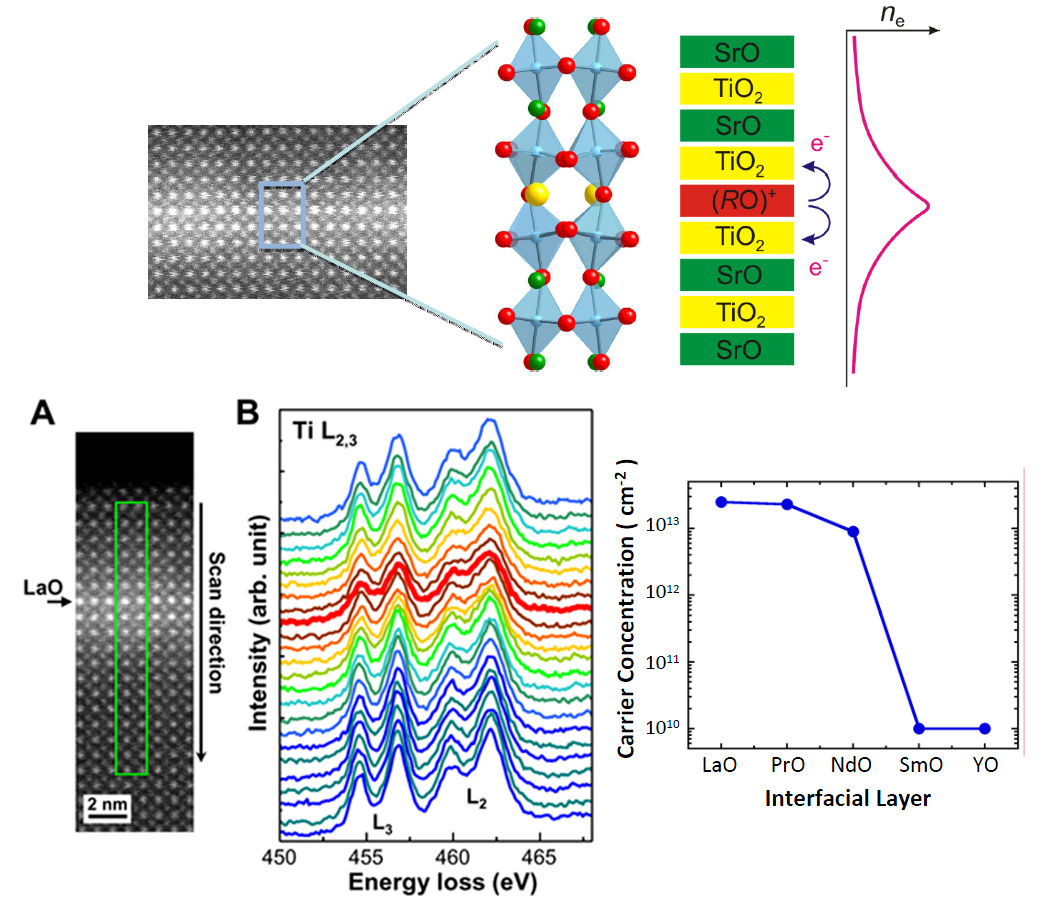

Top row: An atomic image of strontium titanate with one single rare-earth (R) -oxygen layer in the middle. The structure model is shown in the middle, where red is oxygen, green is strontium, blue is titanium and yellow is the rare-earth element. The RO layer at the interface can donate electrons to neighboring atomic layers.

Bottom row: Atom-by-atom imaging and spectroscopy measurement of the electronic structure at a highly conductive interface where lanthanum oxide was inserted. The conductivity measurement shows a drastic difference in electron concentration at the interface for different R elements.

Most people cross borders such as doorways or state lines without thinking much about it. Yet not all borders are places of limbo intended only for crossing. Some borders, like those between two materials that are brought together, are dynamic places where special things can happen.

For an electron moving from one material toward the other, this space is where it can join other electrons, which together can create current, magnetism or even light.

A multi-institutional team has made fundamental discoveries at the border regions, called interfaces, between oxide materials. Led by University of Wisconsin-Madison Materials Science and Engineering Professor Chang-Beom Eom, the team has discovered how to manipulate electrons oxide interfaces by inserting a single layer of atoms. The researchers also have discovered unusual electron behaviors at these engineered interfaces.

Their work, which will be published February 18, 2011, in the journal Science, will allow researchers to further study and develop interfaces with a wide array of properties.

Eom’s team blends theorists and experimentalists, including UW-Madison Physics Professor Mark Rzchowski and collaborators at the University of Nebraska-Lincoln, University of Michigan, Argonne National Laboratory and Brookhaven National Laboratory.

The researchers used two pieces of precisely grown strontium titanate, which is a type of oxide, or compound with oxygen as a fundamental element. Between the pieces, the researchers inserted a one-atom-thick layer of one of five rare-earth elements, which are important components in the electronics industry.

The team found that the rare-earth element layer creates an electron gas that has some interesting characteristics. The gas actually behaves more like an electron “liquid,” since the electrons move more in tandem, or in correlation, than a gas normally does.

“If you take two materials, each has different characteristics, and if you put them together, at their interface you may find something unexpected,” Eom says.

This research is the first demonstration of strong correlation among electrons at an oxide interface. The electron layer displayed distinct characteristics depending on the particular rare-earth element the team used. Materials with larger ionic radii, such as lanthanum, neodymium and praseodymium, are conducting, whereas materials with smaller radii, including samarium and yttrium, are insulating.

The insulating elements form an electron gas that can be compared to a thick liquid, somewhat like honey. The higher viscosity (basically, thickness) means the electrons can’t move around as freely, making them more insulating. Conversely, the conducting elements form a gas that is a “liquid” more like gasoline; the viscosity is lower, so the electrons can move more freely and are better conductors.

Prior to this research, scientists knew extra electrons could reside at interfaces, but they didn’t realize the complexity of how the electrons then behaved together at those interfaces.

The discovery of liquid-like behavior in the electron layer could open up an entire field of interfacial engineering for other scientists to explore, as well as new applications that take advantage of electron interactions. Since Eom and his colleagues developed an understanding of the basic physics behind these behaviors, their work could be expanded to create not only conductive or insulating interfaces, but also magnetic or optical ones.

Though scientists previously have looked at semiconductor interfaces, Eom’s team is the first to specifically address those that use oxide interfaces to control conducting states with a single atomic layer. Oxides make up a class of materials including millions of compounds, and each has its own unique set of properties. The ability to manipulate various oxide interfaces could give rise to new generations of materials, electronics and other devices.

“This advancement could make a broad impact in fields even beyond physics, materials or chemistry,” Eom says. “People can use the idea that an interface made from a single atomic layer of different ions can be used to create all kinds of properties.”

Written by Sandra Knisely, (608) 346-1463.

MEDIA CONTACT: Chang-Beom Eom (608) 263-6305.
