Listening to the Radio on the Far Side of the Moon

LuSEE-Night will demonstrate whether an experiment to search for ancient radio signals can survive the moon's unforgiving environment

By Lauren Biron, Lawrence Berkeley National Laboratory

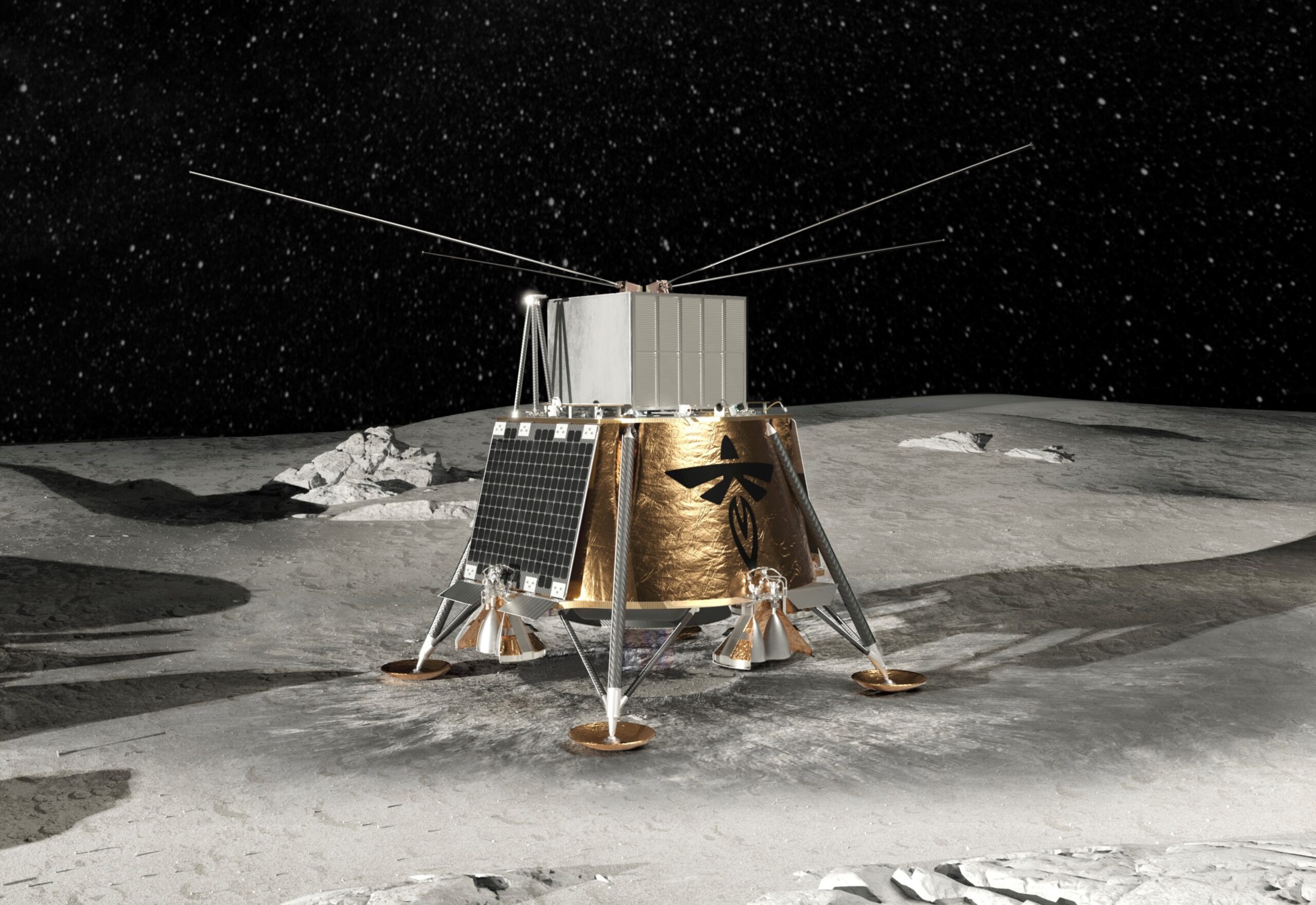

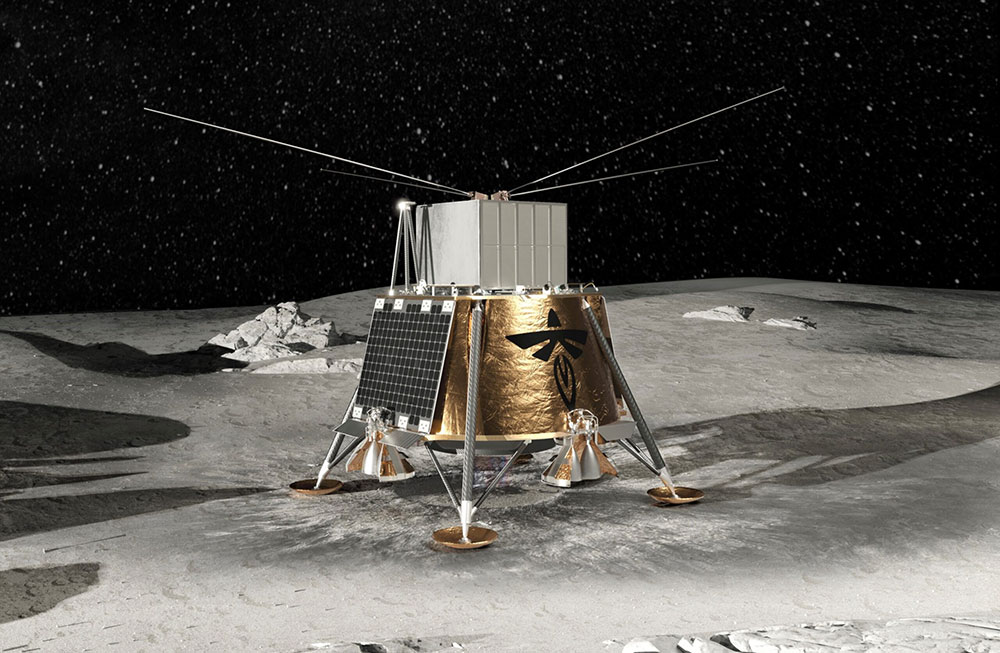

endering shows LuSEE-Night atop the Blue Ghost spacecraft on the moon's surface enlarge

This artist's rendering shows LuSEE-Night atop the Blue Ghost spacecraft scheduled to deliver the experiment to the far side of the moon. Credit: Firefly Aerospace

The following story on a new lunar telescope project was originally published by the U.S. Department of Energy’s (DOE) Lawrence Berkeley National Laboratory. Scientists and engineers from DOE’s Brookhaven National Laboratory are leading this project, known as the Lunar Surface Electromagnetics Experiment-Night (LuSEE-Night). For more information about Brookhaven’s role in this project, see the story Brookhaven Lab published earlier this year, or contact: Stephanie Kossman,, 631-344-8671

There are unexplored regions of the universe – and there are also unexplored times. In fact, there’s a nearly 400-million-year gap in our universe’s history that we’ve never seen: a time before stars known as the Dark Ages. To investigate that era, researchers want to pick up a particular radio signal that can’t be measured from Earth.

The first step to listening for it is a pathfinder project known as the Lunar Surface Electromagnetics Experiment-Night, or LuSEE-Night. The experiment is slated to head to the moon in 2025, where it will test technology in the harsh lunar environment.

The project is a collaboration between NASA and the Department of Energy, with partners from Lawrence Berkeley National Laboratory (Berkeley Lab), Brookhaven National Laboratory (lead DOE lab), UC Berkeley, and the University of Minnesota. The Berkeley Lab team has started building the experiment’s antenna that will try to tune in to those ancient radio waves.

“If you're on the far side of the moon, you have a pristine, radio-quiet environment from which you can try to detect this signal from the Dark Ages,” said Kaja Rotermund, a postdoctoral researcher at Berkeley Lab who is working on the antenna. “LuSEE-Night is a mission showing whether we can make these kinds of observations from a location that we've never been in, and also for a frequency range that we've never been able to observe.

The Dark Ages signal can’t be measured from the Earth because our atmosphere absorbs, refracts, and reflects the radio signal before it ever reaches instruments on the ground. Even if it could, the radio signal would be drowned out by noise from our own electronics and communications.

The moon acts as a shield, blocking out radio waves from Earth. And by gathering data only during the two-week lunar night, the experiment can also block out radio waves from the sun. But this isolated spot also brings challenges. LuSEE-Night must operate in temperatures around -280 degrees Fahrenheit, then weather an extreme swing to 250 degrees Fahrenheit during lunar day, when it will recharge its batteries. And because the far side of the moon never faces Earth, direct communication with the experiment is impossible. LuSEE-Night will have to send all its data through a relay satellite that passes overhead.

“The engineering to land a scientific instrument on the far side of the moon alone is a huge accomplishment,” said Aritoki Suzuki, who leads the antenna project for Berkeley Lab. “If we can demonstrate that this is possible – that we can get there, deploy, and survive the night – that can open up the field for the community and future experiments.”

Rocking out to the Dark Ages

Moon enlarge

LuSEE-Night will observe the universe from the far side of the moon. Credit: NASA/Goddard Space Flight Center/Arizona State University

After the big bang, the universe was filled with a hot, opaque plasma of roaming particles. After about 400,000 years, the plasma had cooled enough for protons and electrons to combine into hydrogen, freeing light to travel through the universe. That light, known as the cosmic microwave background or CMB, reached our telescopes and gave us a baby picture of our universe. After that, hydrogen gas dominated for nearly 400 million years during the Dark Ages, until the first stars and galaxies began to form at the cosmic dawn.

“With the CMB, we have this snapshot of the early universe. And we also have images from the more recent universe, once the stars are born,” Suzuki said. “We want to study the Dark Ages period because it connects how the early universe evolved into the universe we see today.”

Researchers expect that the hydrogen absorbed some of the energy from the CMB at a particular frequency. As the universe expanded, the frequency shifted lower and might now be picked up as radio waves. LuSEE-Night will listen for frequencies between 0.5 and 50 megahertz, though it’s likely that future, more sensitive experiments will be needed to find the faint signal.

“We’re looking for this very tiny dip that is potentially the Dark Ages signal,” Rotermund said. “We can learn a lot about the cosmology that’s being governed during this time period in a way that is unaffected by stars and other objects that grow very differently, compared to the universe in general.”

From the lab to the moon

To collect radio waves, LuSEE-Night will use two pairs of antennas that are six meters from tip to tip – but the whole experiment must travel to the moon in a cube with one-meter sides. Once LuSEE-Night lands, the spring-loaded “stacer” antennas will uncoil into position.

To make the antenna system for its lunar voyage, Berkeley Lab researchers began with simulations and models and then turned to building and testing.

The team headed to the roof of one of Berkeley Lab’s buildings with a scale model of one antenna, reduced from 3 meters to 30 centimeters. They used a transmitter to send signals to the antenna across the wide-open space.

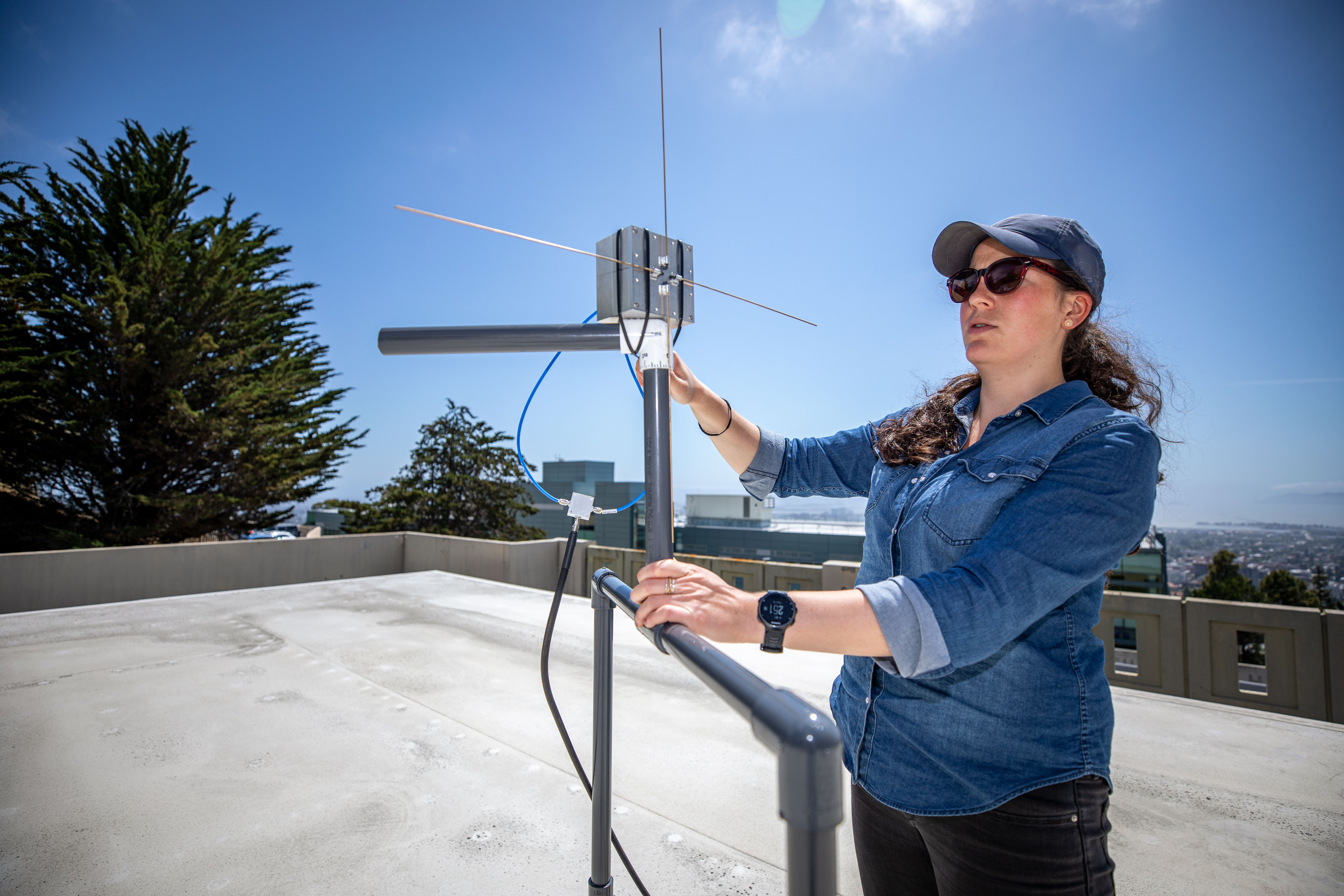

Kaja Rotermund, wearing a blue shirt, baseball cap, and sunglasses, adjusts antenna on a rooftop on enlarge

Researcher Kaja Rotermund makes adjustments to the LuSEE-Night test antenna at Berkeley Lab. Credit: Marilyn Sargent/Berkeley Lab

“It’s important to characterize our antennas so we’re confident in the information that we’re getting, and so that we set it up in a way that has the best chance of seeing the Dark Ages signal,” Rotermund said. The team has figured out the best design, simulated what the antennas’ beam patterns will look like, and calibrated the electronics so they can tell how strong a signal they are receiving.

The Berkeley Lab team is also building a turntable that will periodically rotate the antennas. Because researchers expect the Dark Ages signal to be the same in all directions, any signal that changes after the spin can essentially be filtered from the data. That includes radio noise from other planets or galaxies, or even variations caused by the rocky surface (the “lunar regolith”) underneath the experiment.

Following a successful technical review in summer, the team is now working with UC Berkeley’s Space Science Laboratory and building the flight model that will head to the moon. They’ll deliver the final antenna subsystem by January 2024, where it will be integrated with LuSEE-Night’s other components – including the whopping 110-pound (50-kg) battery that sustains it through the night. The experiment will head to the moon on a future Commercial Lunar Payload Services (CLPS) flight operated by Firefly Aerospace and collect data for 18 months.

This work is supported by the DOE Office of Science High Energy Physics program.
