Scientists Patent Corrosion-Resistant Nano-Coating for Metals

Thinner, less toxic than existing coatings; efficient and economical to produce

Toshifumi Sugama

Toshifumi Sugama

UPTON, NY — Scientists at the U.S. Department of Energy’s Brookhaven National Laboratory have developed a method for coating metal surfaces with an ultrathin film containing nanoparticles — particles measuring billionths of a meter — which renders the metal resistant to corrosion and eliminates the use of toxic chromium for this purpose. The scientists have been awarded U.S. Patent number 7,507,480 for their method and the corrosion-resistant metals made from it. The technology is available for licensing.

“Our coating is produced right on the metal using a simple two- or three-step process to produce a thin film structure by crosslinking among the component compounds,” said chemist Toshifumi Sugama, a guest researcher at Brookhaven Lab. “The result is a layer less than 10 nanometers thick that protects the metal from corrosion, even in briny conditions.”

Corrosion resistance is essential for metals used in a wide range of applications, from electronics to aviation to power plants. Traditionally, compounds containing a toxic form of chromium have provided the best corrosion resistance. Scientists looking to develop chromium-free alternatives have been unable to achieve the thin layers desirable for many applications. “Ultrathin coatings reduce the amount of material needed to provide corrosion resistance, thereby reducing the cost,” Sugama explained.

Sugama’s approach achieves several goals — low toxicity and excellent corrosion resistance in a film measuring less than 10 nanometers that can be applied to a wide array of metals, including aluminum, steel, nickel, zinc, copper, bronze, and brass. According to Sugama, the coating should be of specific interest to industries that produce coated valves, pumps, and other components, as well as the manufacturers of aluminum fins used in air-cooled condensers at geothermal power plants, where preventing brine-induced corrosion is a high priority.

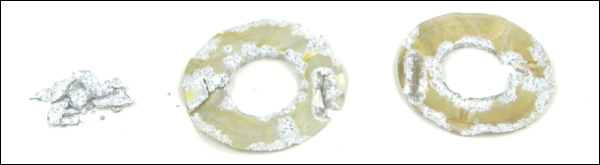

Picture of aluminum fins

Aluminum fins from a geothermal power plant subjected to 24,000 wet/dry cycles of exposure to briny conditions. The far left fin, with no protective coating, completely dissolved. The middle fin had a nano coating with a low level of cerium oxide, while the far right fin had a coating with a higher concentration of cerium oxide nanoparticles.

The coating can be made in a variety of ways suited to a particular application. In one embodiment, it starts as a liquid solution that can be sprayed onto the metal, or the metal can be dipped into it. The metal is then subjected to one or more treatment steps, sometimes including heating for a period of time, to trigger cross-linking reactions between the compounds, and simultaneously, to form corrosion-inhibiting metal oxide nanoparticles, such as environmentally benign cerium-based oxides.

“Among the key factors that ensure the maximum corrosion-mitigating performance of these ultrathin coating films are the great water-repellency, the deposition of metal oxide nanoparticles over the metal’s surface, and their excellent adhesion to metal. The combination of these factors considerably decreased the corrosion of metals,” said Sugama.

The corrosion resistance of these coatings can be comparable, and even superior, to chromium-based coatings, he said. In fact, these new coatings provide even better coverage of metal surfaces than chromium coatings. Sugama added, “This is particularly advantageous when the metal to be coated possesses fine structural detail.”

Because the method deposits such a thin coating of material, it is highly economical and efficient.

For information about licensing this technology, contact Brookhaven Lab Licensing Associate Poornima Upadhya, (631)-344-4711,

This research was funded by DOE’s Office of Energy Efficiency and Renewable Energy.
