Seeing the Shape of Atomic Nuclei

New theoretical work indicates that the future Electron Ion Collider can be used to measure the shape of atomic nuclei

Rendering of a electron colliding with a nucleus

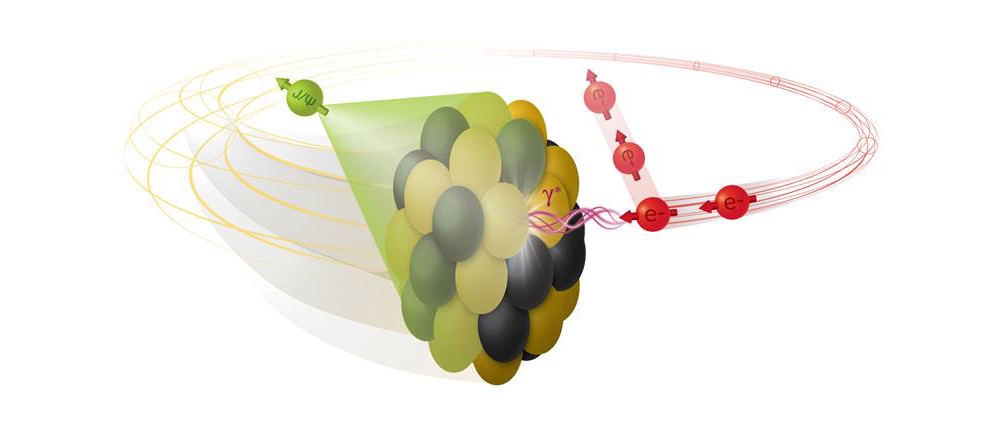

An electron collides with a deformed nucleus and produces a single vector meson (J/Psi). The green cone indicates that the J/Psi production carries information about the size and shape of the nucleus, as well as its internal structure.

The Science

Scientists have developed a new way to study the shapes of atomic nuclei and their internal building blocks. The method relies on modeling the production of certain particles from high-energy collisions of electrons with nuclear targets. Such collisions will take place at the future Electron-Ion Collider (EIC). These results show that collisions that exclusively produce single mesons (a particle made of a quark and antiquark) offer insights into the large-scale structure of the nucleus, for example its size and shape. This will help reveal how much the nucleus resembles a cigar or a pancake. Higher-momentum mesons can “see” nuclear structure at shorter length scales, including the arrangement of quarks and gluons within protons and neutrons.

The Impact

This work suggests that studying mesons produced in EIC collisions will provide novel insights into the structure of atomic nuclei. This method is distinct from traditional methods such as colliding two nuclei at relatively low energy and knocking out a neutron or proton, or exciting nuclei in an electromagnetic field. These traditional methods are sensitive to the distribution of electric charge within nuclei. But the new method gives insight into the distribution of gluons, the particles that hold together the quarks that make up these larger nuclear building blocks. This makes the method a deeper form of “X-ray vision” for atoms.


This work by theorists at Brookhaven National Laboratory, the University of Jyvaskyla in Finland, and Wayne State University provides a theoretical framework for studying nuclear structure at the future EIC. The EIC is a state-of-the-art nuclear physics research facility being built at Brookhaven Lab. The research shows that EIC collisions that exclusively produce single vector mesons will be sensitive to the detailed structure of the nuclear target. In these collisions, the target may stay intact or break up. When it breaks up, the cross section, which is a measure of the probability that the process will occur, is sensitive to fluctuations in the target. These can be driven by position fluctuations of the neutrons and protons. The new work shows that when the target is deformed, these fluctuations are significantly modified, changing the measured cross section.

Because the measurements are done at much higher collision energy than traditional nuclear structure experiments, the interactions are sensitive to the gluon distributions inside the protons and neutrons of the nucleus. Measuring gluon distributions inside the nucleus, rather than the distribution of electric charge, will provide new insight into how these two distributions differ, and how the gluon distribution depends on the energy used to make the measurement. This technique opens a new direction for research at the EIC and could lead to important information that complements information from traditional nuclear structure experiments. It will help scientists understand how nuclear shapes evolve with energy and provide new information on nuclear structure that was previously inaccessible.


Bjoern Schenke
Brookhaven National Laboratory

Chun Shen
Wayne State University


This research was funded by Department of Energy Office of Science, Office of Nuclear Physics, the National Science Foundation, and the Research Council of Finland. The research used computational resources of the Open Science Grid, supported by the National Science Foundation.


Mäntysaari H., Schenke B., Shen C., and Zhao W., Multiscale Imaging of Nuclear Deformation at the Electron-Ion ColliderPhysical Review Letters 131, 062301 (2023). [DOI: 10.1103/PhysRevLett.131.062301]
