December 29, 2012
Scientists from the CFN, in collaboration with a scientist from the Condensed Matter Physics and Materials Science Department at BNL, have fabricated a vertical channel polymer semiconductor field effect transistor architecture by confining the organic material within the gratings of interdigitated trenches. These vertical channel transistors have a similar electronic mobility to that of planar devices that use the same polymer semiconductor, which is consistent with a molecular reorientation within the confining trenches that we now understand through synchrotron X-ray scattering measurements that were performed at the National Synchrotron Light Source (NSLS). Field effect transistors made from organic semiconductors that possess both high current output and using low power supply voltages may find more widespread technological use. The geometric space savings achieved from the perpendicular channel orientation result in devices that source areal current densities that are in excess of 40 mA/cm2, using only a one-volt supply voltage. This configuration maintains near-ideal device operating characteristics, which are among the best reported for organic semiconductor based devices.

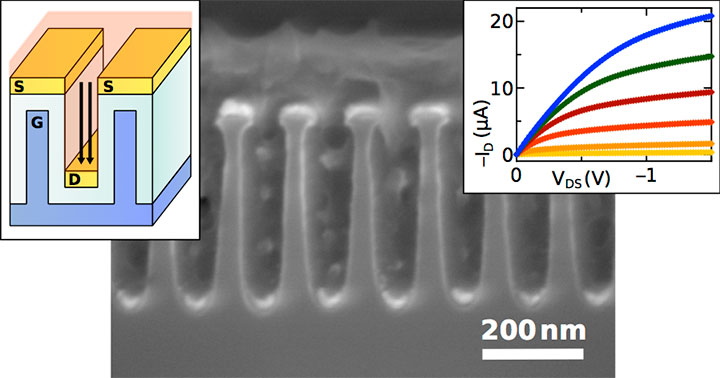

Schematic drawing and scanning electron microscope cross-sectional image of a vertical channel polymer semiconductor field-effect transistor. The device current output (ID) versus voltage (VDS) graph illustrates near-ideal transistor performance attributes at only one-volt operating voltage.
Field effect transistors made from organic semiconductors, which have both high current output and using low power supply voltages, have the potential for more widespread technological use in various electronic devices. The geometric space savings of a perpendicular channel orientation results in devices that source areal current densities in excess of 40 mA/cm2, using only a one-volt supply voltage, and maintain near-ideal device operating characteristics - among the best reported for organic semiconductor based devices.
D. E. Johnston,1 K. G. Yager,1 C. -Y. Nam,1 B. M. Ocko,2 and C. T. Black,1 One-Volt Operation of High-Current Vertical Channel Polymer Semiconductor Field-Effect Transistors, Nano Letters 12, 4181 (2012).
1. Center for Functional Nanomaterials, Brookhaven National Laboratory
2. Condensed Matter Physics and Materials Science Department, Brookhaven National Laboratory
This research was supported by the U.S. Department of Energy, Basic Energy Sciences, at the Center for Functional Nanomaterials (D.J., K.Y., C.N. and C.B.) and the Materials Sciences and Engineering Division (B.O.) (Contract No. DE AC02 98CH10886). This work was partially supported by the Energy Laboratory Research and Development Initiative at Brookhaven National Laboratory.
