The following news release was issued by Los Alamos National Laboratory (LANL). It describes research published on Sept. 6 in Nature Photonics on light-emitting diodes (LEDs) made from nanocrystals with a particular crystalline structure (perovskite) embedded in a porous metal-organic framework (MOF). These LEDs could provide a low-cost, energy-efficient light source for consumer electronics, detectors, and medical imagers. The team conducted the research in part at the Center for Functional Nanomaterials (CFN), a U.S. Department of Energy (DOE) Office of Science User Facility and DOE Nanoscale Science Research Center at Brookhaven National Laboratory. In the CFN Advanced Optical Spectroscopy and Microscopy Facility, CFN staff members Mircea Cotlet and Mingxing Li performed ultrafast luminescence microscopy measurements. These measurements revealed that trap states (states that trap a charge carrier until it recombines) are fulfilled with light-generated carriers through an increase in optical excitation power. This fulfillment of the trap states increased the possibility of charge carrier recombination in the MOF-based perovskites, leading to brighter LEDs. CFN media contact: Ariana Manglaviti, 631-344-2347, amanglaviti@bnl.gov. LANL media contact: Charles Poling, 505-257-8006, cpoling@lanl.gov.

Perovskite LEDs Shine in Metal-Organic Framework

Breakthrough in stabilizing nanocrystals introduces a low-cost, energy- efficient light source for consumer electronic devices, detectors, and medical imaging

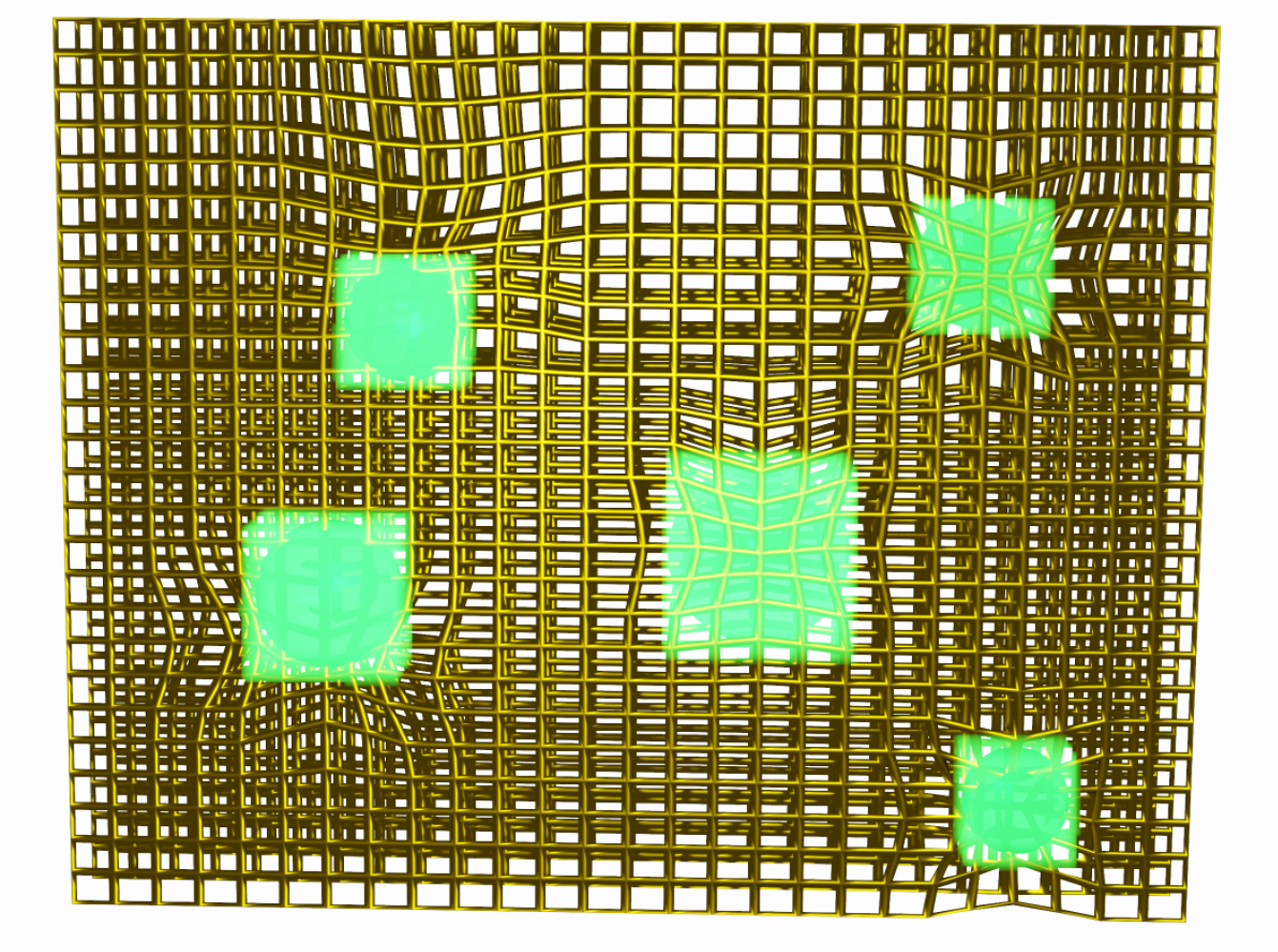

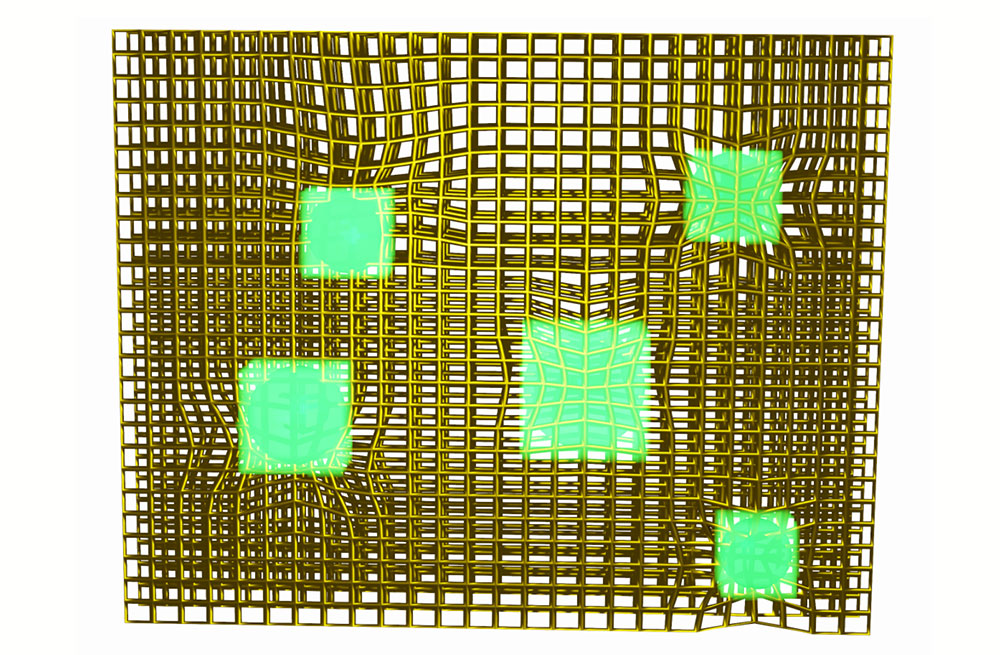

Illustration of light-emitting diodes made from perovskite nanocrystals (green) embedded in a metal- enlarge

Light-emitting diodes made from perovskite nanocrystals (green) embedded in a metal-organic framework can be created at low cost, use earth-abundant materials, and remain stable under typical working conditions. The nanocrystals are suited to a variety of applications, from cell phone screens and TVs to gamma-ray detectors and x-ray–imaging devices.

LOS ALAMOS, N.M., Sept. 8, 2021—By stabilizing perovskite nanocrystals in a metal-organic framework (MOF), a research team has synthesized light-emitting diodes (LEDs) that exploit the performance benefits of the material while avoiding previous roadblocks. Based on earth-abundant materials and fabricated at room temperature, these LEDs could one day enable lower-cost TVs and consumer electronics, better gamma-ray imaging devices, and even self-powered x-ray detectors.

“In this work, we demonstrated for the first time that perovskite nanocrystals stabilized in a MOF will create bright, stable LEDs in a range of colors,” said Wanyi Nie. Nie is a researcher for the Center for Integrated Nanotechnologies at Los Alamos National Laboratory and a corresponding author on the paper, which appeared today in Nature Photonics. “Metal-halide perovskite nanocrystals offer a continuously tunable optical band gap covering almost all the visible spectrum, meaning we can create different colors, improved color purity, and high photoluminescence quantum yield, which is a measure of a material’s ability to produce light.”

“The intriguing concept of combining perovskite nanocrystal in metal-organic frameworks has been demonstrated in powder form, but this is the first time we successfully integrated it as the emission layer in an LED,” added Hsinhan Tsai, a former J. R. Oppenheimer postdoc fellow at Los Alamos.

The research team on the paper included members from Academia Sinica (Taiwan), Argonne National Laboratory, Brookhaven National Laboratory, Los Alamos National Laboratory, SLAC National Accelerator Laboratory, and Stanford University.

“The complementary expertise and state-of-the-art facilities for synthesis and optical and x-ray synchrotron characterization brought in by four U.S. Department of Energy Office of Science User Facilities—the Center for Integrated Nanotechnologies (CINT) at Los Alamos, the Center for Functional Nanomaterials (CFN) at Brookhaven, and the Center for Nanoscale Materials (CNM) and Advanced Photon Source (APS) at Argonne—were critical to this research,” said co-author Mircea Cotlet, a materials scientist in the CFN Soft and Bio Nanomaterials Group. “Our study highlights the importance of national facilities in advancing science, in this case nanoscience.”

“We attacked the stability issue of perovskite materials by encapsulating them in MOF structures,” said Xuedan Ma of Argonne National Laboratory. “Our photophysical studies show that this approach allows us to enhance the brightness and stability of the light-emitting nanocrystals substantially.”

Previous attempts to create nanocrystal LEDs were thwarted by the nanocrystals degrading back to the unwanted bulk phase, losing their nanocrystal advantages and undermining their potential as practical LEDs. Bulk materials consist of billions of atoms. Materials such as perovskites in the nano phase are made of groupings of just a few to a few thousand atoms, and thus behave differently. Perovskites are a class of material that share a particular crystalline structure giving them light-absorbing and light-emitting properties that are useful in a range of energy-efficient applications, including solar cells and various kinds of detectors.

In a novel approach, the research team stabilized the nanocrystals by fabricating them within the matrix of a metal-organic framework, like tennis balls caught in a chain-link fence. They used lead nodes in the framework as the metal precursor and halide salts as the organic material. The solution of halide salts contains methylammonium bromide, which reacts with lead in the framework to assemble nanocrystals around the lead core trapped in the matrix. The matrix keeps the nanocrystals separated, so they don’t interact and degrade. This method is based on a solution coating approach, far less expensive than the vacuum processing used to create the inorganic LEDs in wide use today.

The metal-organic framework LEDs can be fabricated to create a bright red, blue, and green light, along with varying shades of each.

In durability tests, the material performed well under ultraviolet radiation, in heat, and in an electrical field without degrading and losing its light-detecting and light-emitting efficiency, a key condition for practical applications such as TVs and radiation detectors.

Paper: “Bright and Stable Light Emitting Diodes Made with Perovskite Nanocrystals Stabilized in Metal-Organic Frameworks,” by Hsinhan Tsai, Shreetu Shrestha, Rafael A. Vilá, Wenxiao Huang , Cunming Liu , Cheng-Hung Hou, Hsin-Hsiang Huang, Xiewen Wen, Mingxing Li, Gary Wiederrecht, Yi Cui, Mircea Cotlet , Xiaoyi Zhang , Xuedan Ma , Wanyi Nie. Nature Photonics. URL: https://www.nature.com/articles/s41566-021-00857-0

Funding:  Laboratory Directed Research and Development (LDRD) program at Los Alamos National Laboratory and the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences funded the Los Alamos portion of this work.
