More Thermopower Than Expected

Transition metal's high electronic thermopower at icy temperatures is promising for future applications

figure 1 enlarge

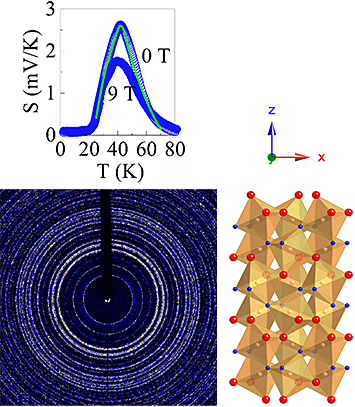

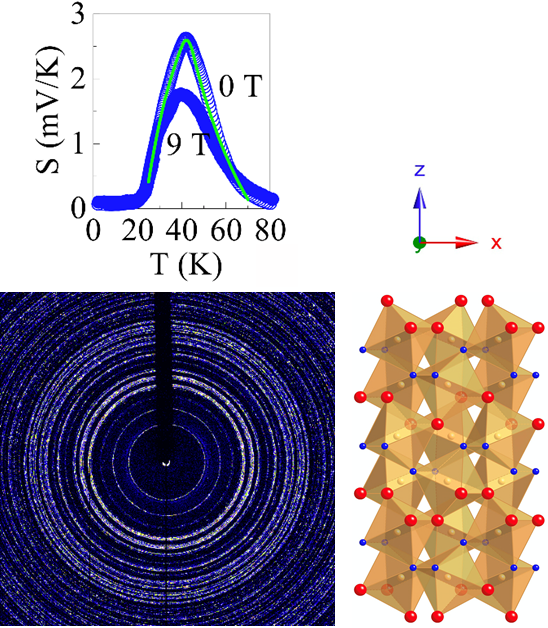

(Top) Thermopower of the material as a function of temperature at 9 Tesla and 0 Tesla field. (Bottom) The crystal structure of CoSbS (right), determined from Debye-Scherrer x-ray diffraction rings (left).

The Science

Scientists revealed the high electronic thermopower of a transition metal made of cobalt (Co), antimony (Sb), and sulfur (S) at cryogenic temperatures. CoSbS already shows high thermoelectric performance at temperatures high above room temperature.

The Impact

By using thermoelectric materials, excess heat can be transformed into electricity; however, most thermoelectric materials are not as efficient below room temperature. CoSbS is promising for designing new thermoelectric materials for applications at cryogenic temperatures.


A very efficient and environmentally friendly energy conversion is to convert heat into electricity. While most powerplants primarily heat water to run turbines, not all the heat ends up in the water—some of it goes into the surrounding materials that enclose the water and the central core of the powerplant. By using thermoelectric materials, even some of this excess heat can be harnessed and transformed into electricity and be used to reduce greenhouse gas emissions.

Thermoelectric materials use the temperature differences between their different sides to generate an electric voltage. Most of these materials work at room temperature; however, there are a large number of applications that require these materials to work at cryogenic temperatures. The challenge with applications at cryogenic temperatures is that the temperature difference is low, and therefore the gain of thermopower is low. Cryo-thermoelecrics should maximize their thermopower and electrical conductivity to be efficient.

In this study, a team of scientists investigated the low-temperature thermopower behavior in the transition metal CoSbS, which is made of cobalt (Co), antimony (Sb) and sulfur (S), and found that a single crystal sample from the material shows extremely high thermopower at cryogenic temperatures. The scientists explain this phenomenon through the material’s electron diffusion. This means that even higher efficiency could be obtained by nanofabrication, which is expected to primarily affect and reduce phonon thermal conductivity.

To study the materials and to confirm that thermopower rise is not caused by crystal structure changes at cryogenic temperatures, the scientists used power x-ray diffraction at the Pair Distribution Function (PDF) beamline at the National Synchrotron Light Source II (NSLS-II)—a DOE Office of Science User Facility at Brookhaven National Laboratory. Using the structural information about the material, the scientists were able to shed more light on the potential of the material. However, additional measurements and investigation will be necessary to fully understand the capabilities of this material.

Download the research summary slide


Cedomir Petrovic
Brookhaven National Laboratory and Stony Brook University

Qianheng Du
Brookhaven National Laboratory and Stony Brook University


M. Q. Du, M. Abeykoon, Y. Liu, G. Kotliar, C. Petrovic, “Low-Temperature Thermopower in CoSbS”, Physical Review Letters, 123, 076602 (2019). DOI: 10.1103/PhysRevLett.123.076602


Work at Brookhaven National Laboratory is supported by the U.S. Department of Energy’s Office of Basic Energy Sciences as part of the Computation Material Science Program. This research used the Pair Distribution Function (PDF) beamline 28-ID-1 of National Synchrotron Light Source II, which is a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Brookhaven National Laboratory under Contract No. DE-SC0012704.
