New Insights into the Synthesis Process of Layered Oxides

Scientists investigated the synthesis of high-performance layered oxide cathode materials for next-generation batteries

diagram enlarge

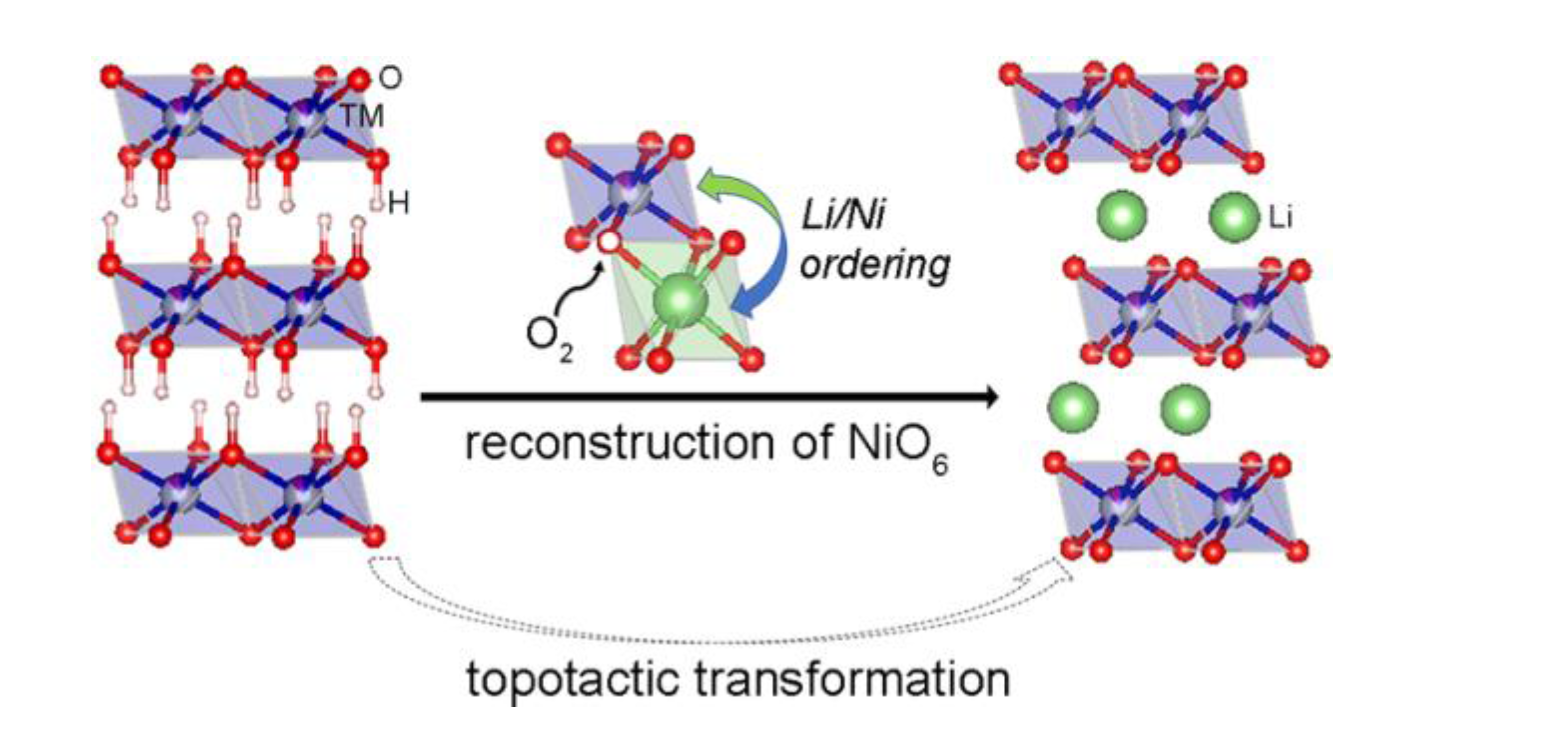

By using a combination of in situ x-ray characterization techniques at the SRX and XPD beamlines at NSLS-II, scientists investigated the structural evolution of a transition metal layered oxide during its synthesis. New insights from this study improved the understanding of how the layers arrange on larger and smaller scales. Image credit: J. Am. Chem. Soc., 140, 39, 12484-12492 (2018)

The Science

Scientists discovered that the synthesis reaction pathway of layered transition metal oxides is dominated by symmetry breaking and reconstructing basic building units (BBUs), consequently affecting the performance of these materials as battery cathodes.

The Impact

Understanding how these materials grow may provide general principles for the design and synthesis of high-performance cathodes for commercial lithium-ion (Li-ion) batteries.

Summary

Many of the devices we use in our daily lives, such as smartphones and laptops, rely on batteries and microelectronics that are made from materials like metal oxides. These materials are particularly interesting to scientists because many of their properties can be directly connected to their atomic structure, or their basic building units (BBUs), and how they are ordered.

One example is high-nickel (high-Ni) transition metal layered oxides, which are intensely pursued worldwide for potential use in Li-ion batteries. Even though it is known that the electrochemical properties of these materials come from the ordering of their BBUs, it is still unknown how this ordering is achieved during the synthesis process of the material.

In this study, scientists used a multimodal in situ x-ray characterization approach to investigate the synthesis process of a specific high-Ni transition metal layered oxide, LiNi0.77Mn0.13Co0.10O2. The scientists investigated the ordering of the material on different length scales, from the long range to local individual units—the BBUS.

To track the structural evolution in these length scales, the scientists used a combination of x-ray techniques at the National Synchrotron Light Source II (NSLS-II) and the Cornell High Energy Synchrotron Source. NSLS-II is a U.S. Department of Energy (DOE) Office of Science User Facility located at DOE’s Brookhaven National Laboratory.

At NSLS-II, the team worked with scientists from the Submicron Resolution X-ray Spectroscopy (SRX) beamline and the X-ray Powder Diffraction (XPD) beamline to show how defects in the structure affect the performance of these materials as battery cathodes.

In their real-time observations supported by first-principles calculations the scientists learned that the oxidation of cobalt (Co) and manganese (Mn) is preferred over Ni oxidation, which lead to significant changes in the local structure, including oxygen (O) loss and the breaking of symmetry. The consequence of this is that Ni2+ ions become highly mobile and tend to mix with Li, causing disordering upon formation of the layered oxides. The scientists also learned that only through high-temperature heat treatment, the Ni is further oxidized and induces symmetry reconstruction.

The findings shed light on synthesis of high-Ni layered oxide cathodes by design and, more broadly, various functional materials through synthetic control of the constituent BBUs.
