2003-021: Multi-Channel Signal Processing Device for Efficient Spectroscopy
Invention: 2003-021
Patent Status: U.S. Patent Number 7,378,637 was issued on May 27, 2008
For technical and licensing related questions, email tcp@bnl.gov.
Summary

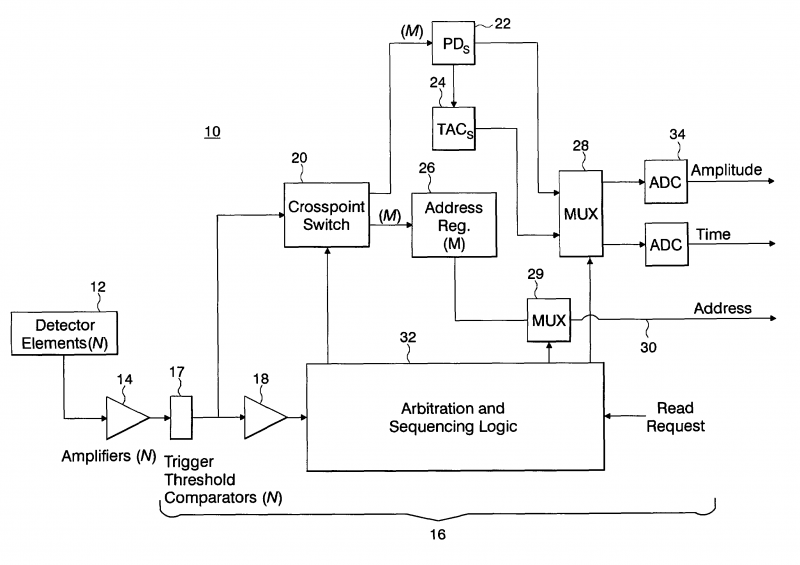

A block diagram of a sensor system.
This new system can detect and output critical data such as amplitude and time of arrival of analog pulses randomly striking a detector. The multi-element system for spectroscopy includes detector elements, channels, trigger comparators, peak detectors, a switch, a logic circuit with asynchronous write pointer, time-to-amplitude converters, a multiplexer, and an analog-to-digital converter.
Description
This method processes pulses arriving randomly in time on at least one channel using multiple peak detectors includes asynchronously selecting a non-busy peak detector (PD) in response to a pulse-generated trigger signal, connecting the channel to the selected PD in response to the trigger signal, and detecting a pulse peak amplitude. Amplitude and time of arrival data are output in first-in first-out (FIFO) sequence. The apparatus includes trigger comparators to generate the trigger signal for the pulse-receiving channel, PDs, a switch for connecting the channel to the selected PD, and logic circuitry which maintains the write pointer. Time-to-amplitude converters (TACs) convert time of arrival to analog voltage and an analog multiplexer provides FIFO output. A multi-element sensor system for spectroscopy includes detector elements, channels, trigger comparators, PDs, a switch, and a logic circuit with asynchronous write pointer.
Benefits
The innovative system provides a signal processing device for spectroscopy that efficiently processes pulses arriving on one or more channels. As such, it also provides a more efficient sensor system encompassing less complex signal processing electronics, which efficiently derandomizes, processes and digitizes pulses from a large number of detector elements.
Applications and Industries
The sensor system can be used in high-speed spectroscopy in applications such as medical imaging, high-energy particle tracking, and x-ray astronomy.
