Infrared Invisibility: Controlling Thermal Radiation

Scientists found a new quantum material that could hide you from infrared cameras

new material and a normal sample, and an illustration of the principle of infrared camouflage enlarge

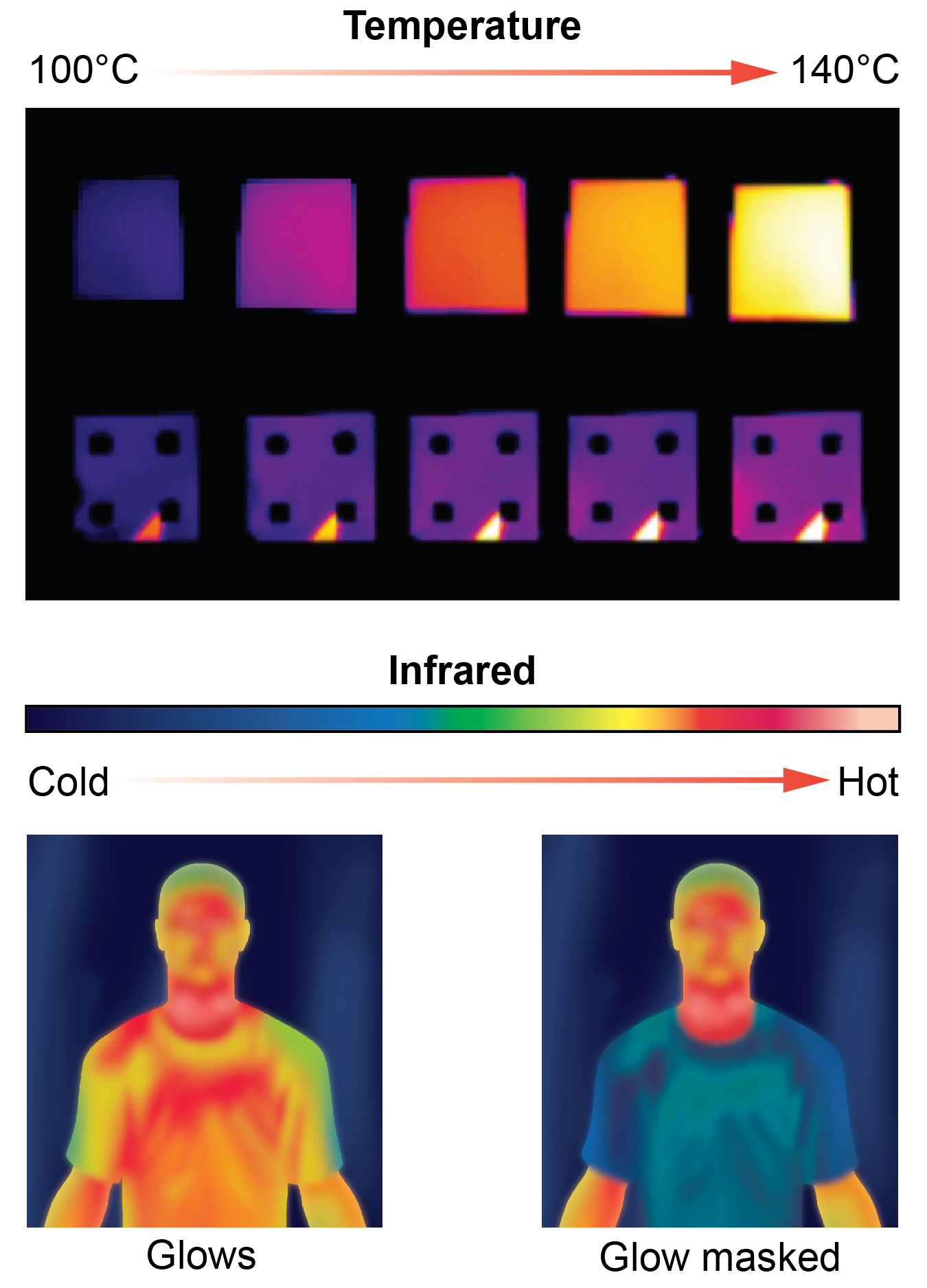

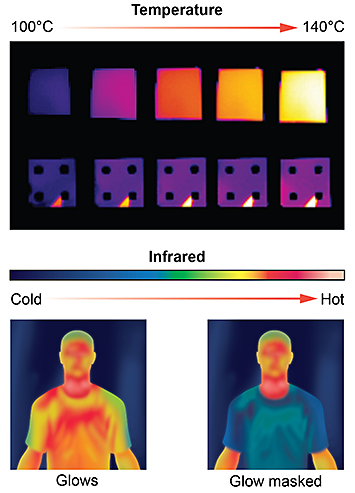

(Top) a comparison between the new material and a normal sample. (Bottom) Illustration of the principle of infrared camouflage.

The Science

For the first time, scientists found a material whose quantum nature enables it to mask its heat properties from infrared cameras.

The Impact

This new result has significant impact on applications such as infrared camouflage, privacy shielding, and other future applications of quantum materials in controlling heat transfer.

Summary

Conventional wisdom states that the hotter an object is, the brighter it glows. This is the case for thermal light at any wavelength and enables applications such as infrared imaging and noncontact thermometry.

In this work, scientists demonstrate, for the first time, a coating that emits the same amount of thermal radiation independent of its temperature, within a temperature range of about 30 °C. This is accomplished using samarium nickel oxide (SmNiO3)—a quantum material that changes strongly but gradually as a function of temperature. The scientists attribute this evolution of its optical properties over the temperature range of ∼40 to ∼140 °C to a fully reversible and hysteresis-free thermally driven insulator-to-metal transition (IMT). The thermal IMT in SmNiO3 is due to charge disproportionation in the Ni site and involves subtle changes in the Ni–O–Ni bond angle.

The scientists designed a zero-differential thermal emitter (ZDTE), an ultrathin film based on SmNiO3, and investigated its optical properties thoroughly using various experimental techniques. Among other techniques, they used spatially resolved x-ray absorption spectroscopy in the XPEEM/LEEM endstation at the Electron Spectro-Microscopy (ESM) beamline to map the material’s thermal transition, which showed a smooth variation with temperature. The EMS beamline is part of the material characterization capabilities of the National Synchrotron Light Source II (NSLS-II), a U.S. Department of Energy Office of Science User Facility located at Brookhaven National Laboratory.

The scientists confirmed the presence of a zero-differential region in a model experiment where two samples—their ZDTE and a reference sapphire wafer—were mounted in way that only a corner of each sample was heated. The scientists found that the wafer showed the expected temperature gradient across it surface, while the ZDTE showed nearly the same thermal radiation across the surface.

This is the first time that temperature-independent thermal radiation has been demonstrated, and these findings have substantial implications for infrared camouflage, privacy shielding, and radiative heat transfer.

Download the research summary slide

Related Links

Feature Story: “Camouflage Made of Quantum Material Could Hide You From Infrared Cameras

Contact

Mikhail A. Kats
University of Wisconsin–Madison
mkats@wisc.edu

Publications

A. Shahsafi, P. Roney, Y. Zhou, Z. Zhang, Y. Xiao, C. Wan, R. Wambold, J. Salman, Z. Yu, J. Li, J. T. Sadowski, R. Comin, S. Ramanathan, M. A. Kats. “Temperature-independent thermal radiation”. PNAS 116 (52) 26402-26406 (2019). DOI: https://doi.org/10.1073/pnas.1911244116
