Organic Cathode for High Performance Lithium Batteries

The new, sulfur-based material is more energy-dense, cost-effective, and environmentally friendly than traditional cathodes in lithium batteries

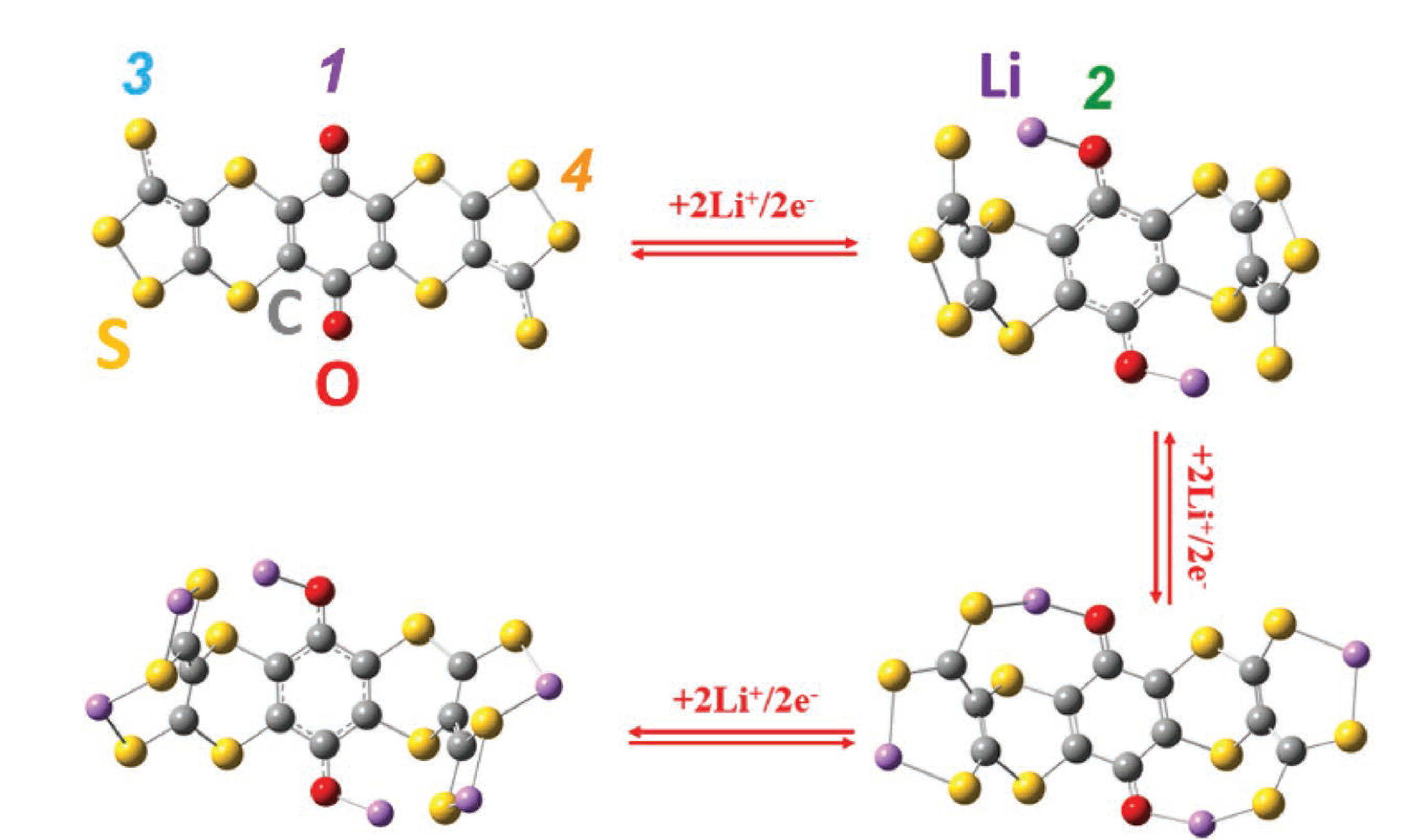

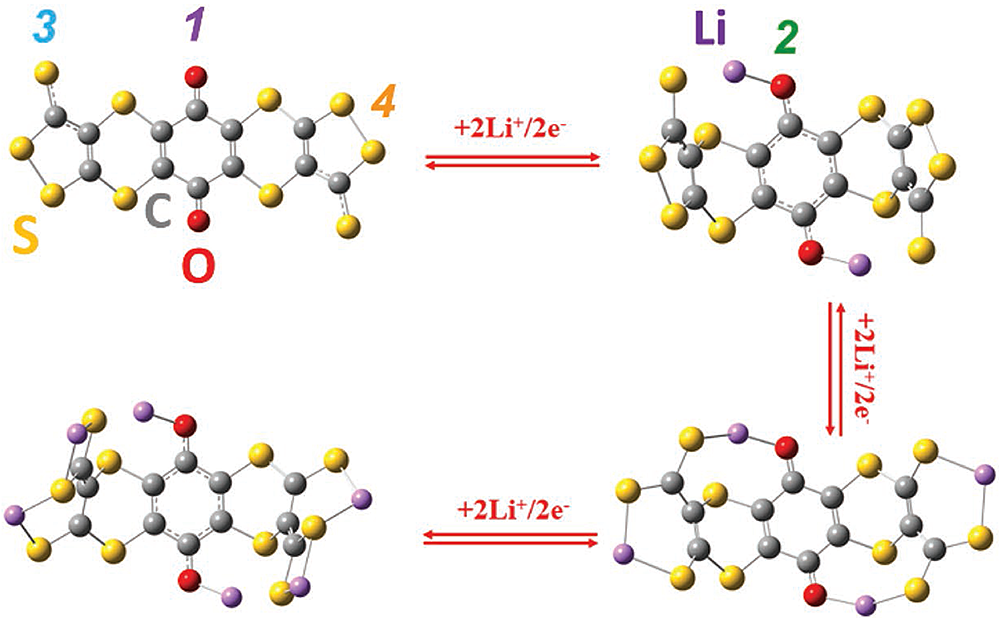

structural evolution of the new organic battery electrode during the lithiation process enlarge

The image shows the structural evolution of the new organic battery electrode during the lithiation process. The measurements and calculations suggest that the process has three stages in which Li2, Li4, and Li6 are formed sequentially (shown clockwise in the figure). Image Credit: Adv. Energy Mater. 1900705 (2019)

The Science

Scientists have designed a new energy-dense, cost-effective, environmentally friendly, organic cathode material for lithium-ion batteries.

The Impact

As the demand for lithium batteries continues to rise, scientists are investigating how to optimize cathode materials to improve the overall performance of lithium battery systems. This study opens the pathway to a potential new cost-effective, environmentally friendly, organic cathode material for lithium-ion batteries.

Summary

Researchers have designed a new, organic cathode material for lithium-ion (Li-ion) batteries. With sulfur at its core, the material is more energy-dense, cost-effective, and environmentally friendly than traditional cathode materials in Li-ion batteries. When designing the new cathode material, the researchers chose an organodisulfide compound that is only made of light elements like carbon, hydrogen, sulfur, and oxygen and not the heavy metals found in typical Li-ion batteries.

Due to an undesirable compound that dissolves in the electrolyte and diffuses throughout the battery, sulfur can cause adverse reactions that degrade battery performance. The scientists addressed this issue by designing a cathode material in which sulfur atoms are attached to an organic backbone.

The study on the new material shows that the carbonyl group—having a double bond between a carbon atom and an oxygen atom—improves the fast charge-discharge capability of the battery and adds extra capacity.

The researchers used soft x-rays at the In situ and Operando Soft X-ray Spectroscopy (IOS) beamline of the National Synchrotron Light Source II (NSLS-II)—a U.S. Department of Energy (DOE) Office of Science User Facility located at DOE’s Brookhaven National Laboratory—to directly probe the oxygen atom in the organic backbone and study its electronic structure before and after the battery charged and discharged.

Additionally, the scientists used NSLS-II's X-ray Powder Diffraction (XPD) beamline and Tender Energy X-ray Absorption Spectroscopy (TES) beamline to verify the theoretically predicted structure of the material.

The results from NSLS-II and additional experiments at the Canadian Light Source enabled the scientists to successfully confirm the battery’s charge-discharge capacity provided by the sulfur atoms. The researchers say this study provides a new strategy for improving the performance of sulfur-based cathodes for high performance Li-ion batteries.

Download the research summary slide

Related Links

Feature Story: “Scientists Design Organic Cathode for High Performance Batteries

Contact

Seong-Min Bak
Brookhaven National Laboratory
smbak@bnl.gov

Xiao-Qing Yang
Brookhaven National Laboratory
xyang@bnl.gov

Publications

Z. Shadike, H.-S. Lee, C. Tian, K. Sun, L. Song, E. Hu, I. Waluyo, A. Hunt, S. Ghose, Y. Hu, J. Zhou, J. Wang, P. Northrup, S.-M. Bak, X.-Q. Yang, Synthesis and Characterization of a Molecularly Designed High-Performance Organodisulfide as Cathode Material for Lithium Batteries, Adv. Energy Mater. 1900705 (2019). DOI: 10.1002/aenm.201900705
