X-rays Reveal Elusive Chemistry for Better EV Batteries

Scientists gain new insights on stability issues of lithium metal anodes

Schematic enlarge

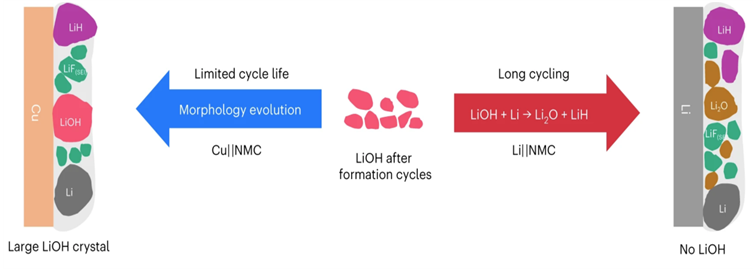

Schematic picture of how the solid-electrolyte interphase component evolves during battery cycling based on X-ray diffraction results. Image credit: S. Tan, et. al. Nat. Nanotechnol. (2022).

The Science

High energy x-rays enabled scientists to probe the solid-electrolyte interphase, a sensitive chemical layer in batteries that's key to stabilizing lithium metal anodes.

The Impact

By stabilizing the lithium metal anode, these batteries have the potential to provide more than double the energy density as traditional graphite anodes.


Lithium-ion batteries have become common due to their high efficiency and long life, but these batteries face challenges in more demanding applications, such as powering electric vehicles over long distances. Lithium metal anodes offer a much higher energy density than more traditional graphite anodes. But one of the biggest challenges scientists currently face is finding a way to stabilize the anode as the battery charges and discharges. The key to this stabilization is controlling the chemistry of a chemical layer in batteries called the solid-electrolyte interphase (SEI).

The sensitivity of the SEI makes it very challenging to study. But the high-energy x-rays at the X-ray Powder Diffraction (XPD) beamline at the National Synchrotron Light Source II (NSLS-II) provide less radiation damage to the sample. And by combining synchrotron-based X-ray diffraction and pair distribution function analysis, the scientists revealed a much more convoluted formation mechanism of SEI, with significant contributions from electrolyte, cathode, moisture, and native surface species on lithium metal, and with a highly dynamic nature during cycling.

Using isotope labeling of the solvent, the team traced the origin of LiH to electrolyte solvent, moisture, and a new source: the native surface species (LiOH) on pristine Li metal. When lithium accessibility is very limited as in the case of anode-free cells, LiOH develops into plate-shaped large crystals during cycling. Alternatively, if the lithium source is abundant, LiOH reacts with Li metal to form LiH and Li2O. While the desired anion-derived LiF-rich SEI is typically found in the concentrated electrolytes or their derivatives, the team found that it can also be formed in a low-concentration electrolyte via the crosstalk effect.

Elucidation of the formation and cycling pathways of these components revealed opportunities for low-cost electrolyte development.

Download the research summary slide (PDF)
