Environmental Closed Loop Atomic Force Microscope

Facility Materials Synthesis and CharacterizationCategory Scanning and Probing Microscopy Full Catalog

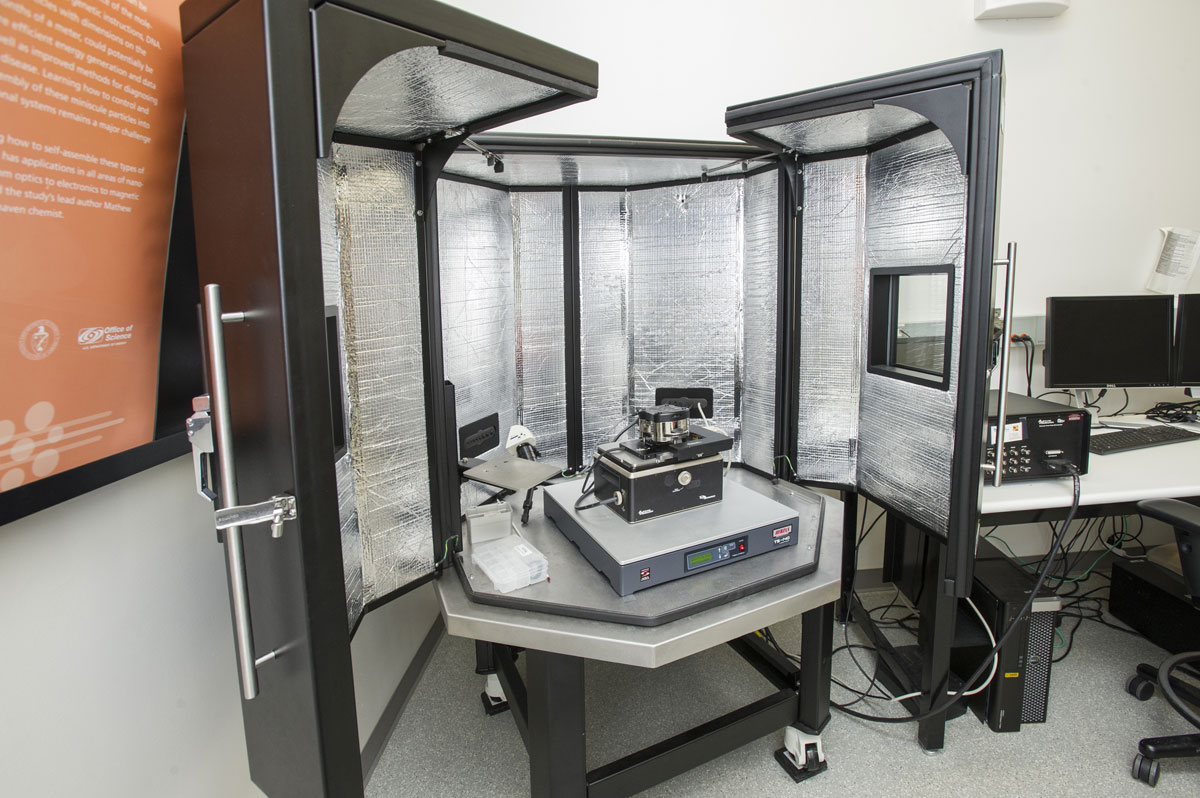

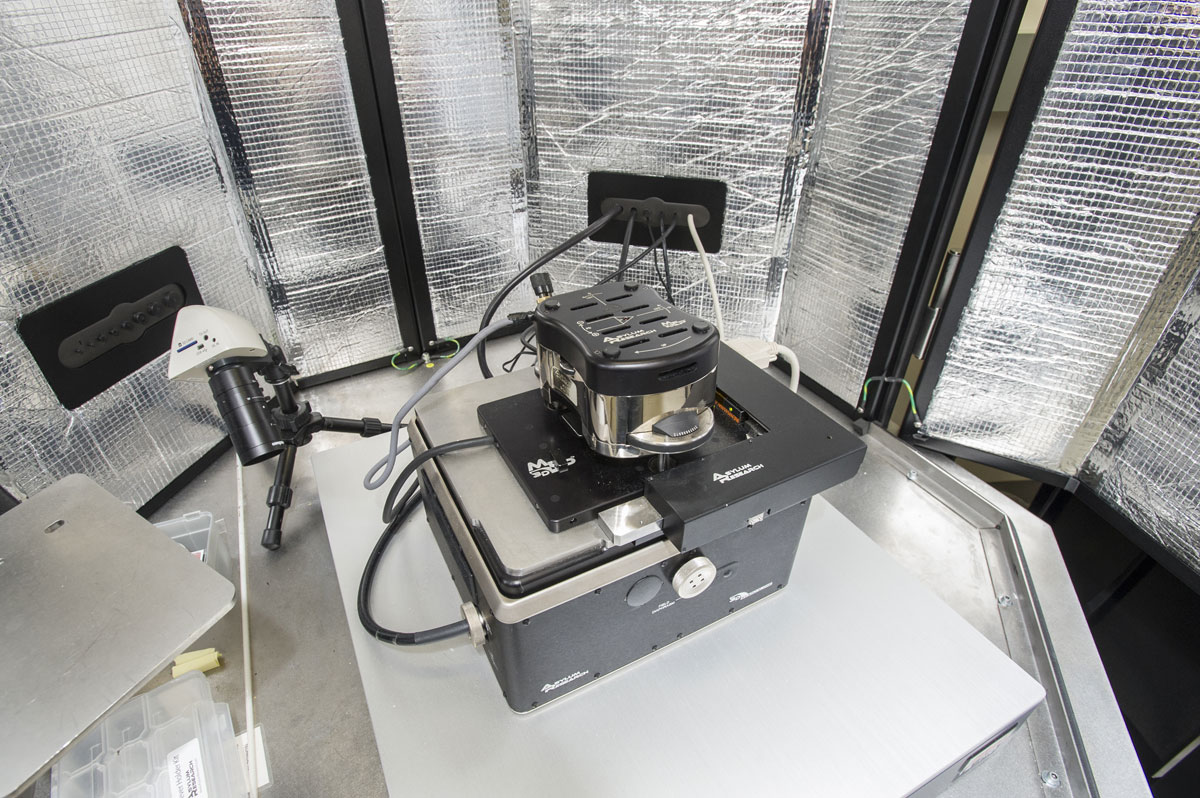

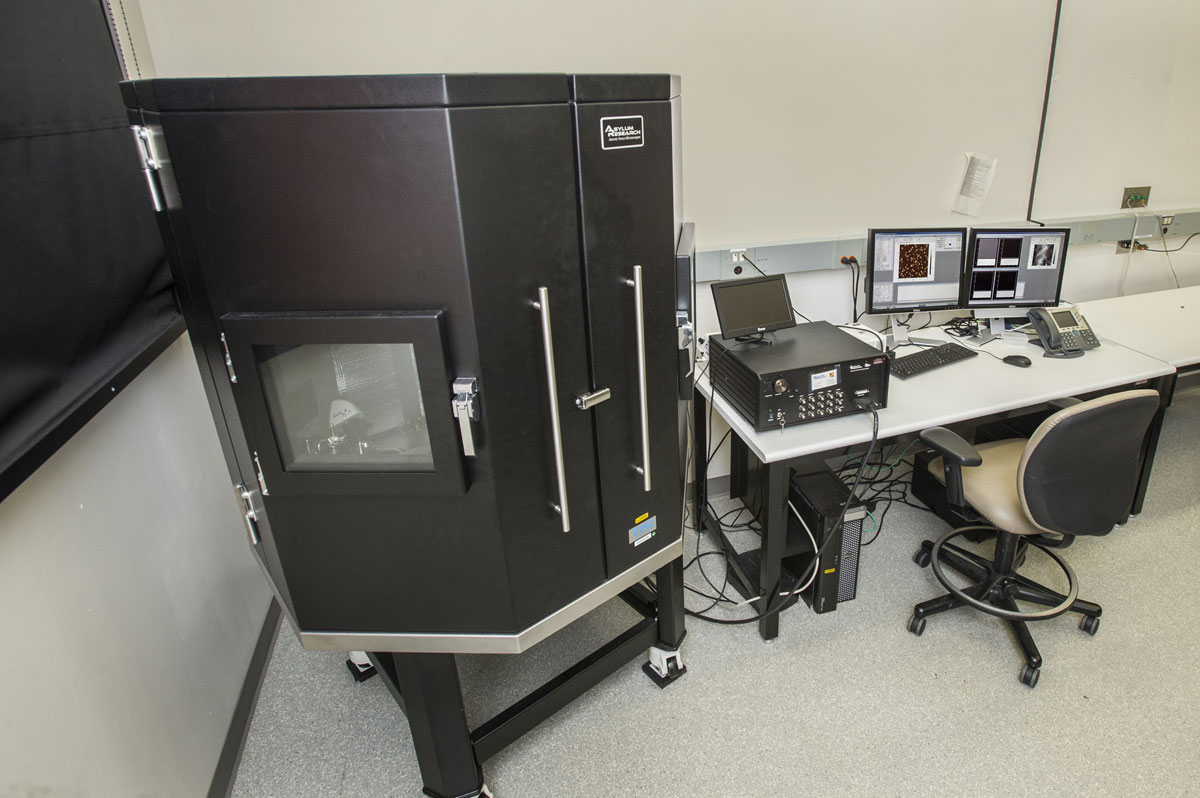

This AFM (Asylum MFD-3D-BIOsystem) provides low noise performance with closed loop sensors in all three axes. A nanopositioning head is equipped with narrowband filter, top view optics and x-y scanning stage. Standard scan modes include Q-controlled AC (with phase), contact mode (with lateral force), force curves and force volumes, and magnetic force measurements (MFM). The instrument is capable of nanolithography and nanomanipulation and includes custom scripting software.

Manufacturer: Asylum MFD-3D-BIO
