Scanning Electron Microscope (SEM)

Facility: Materials Synthesis and CharacterizationCategory: Electron Microscopy Full Catalog

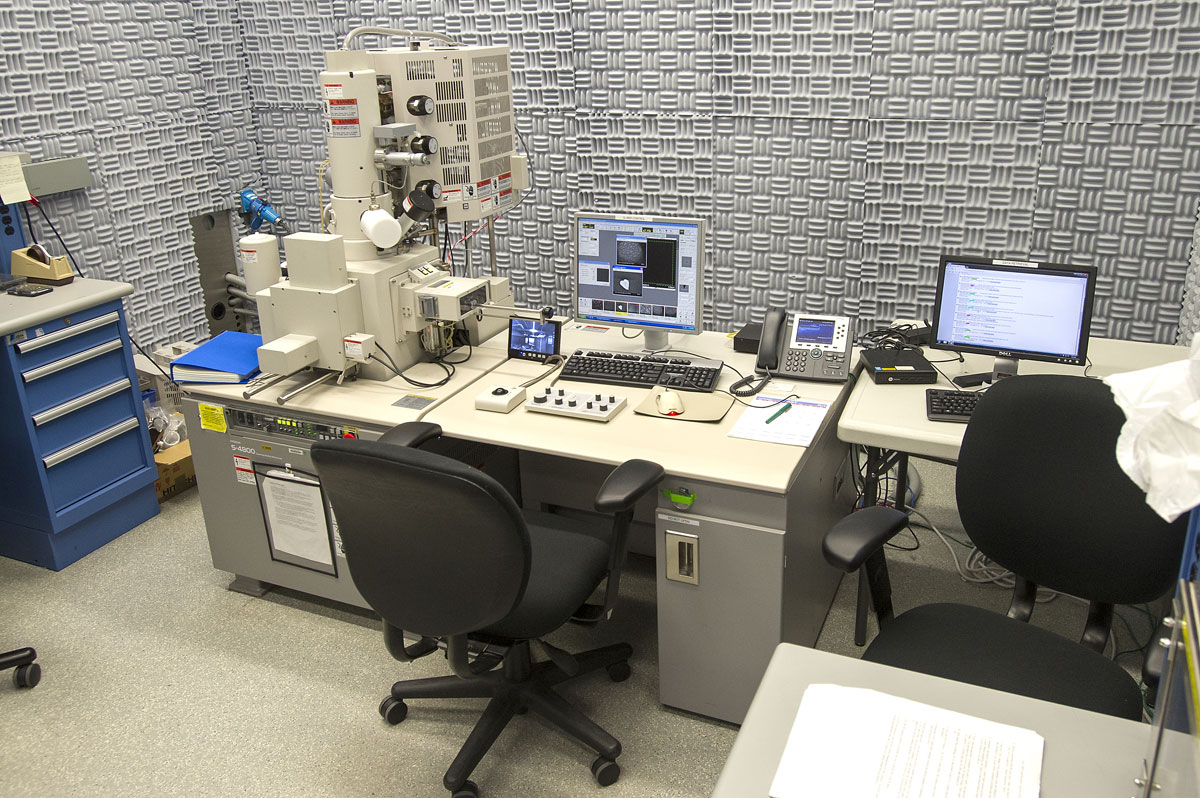

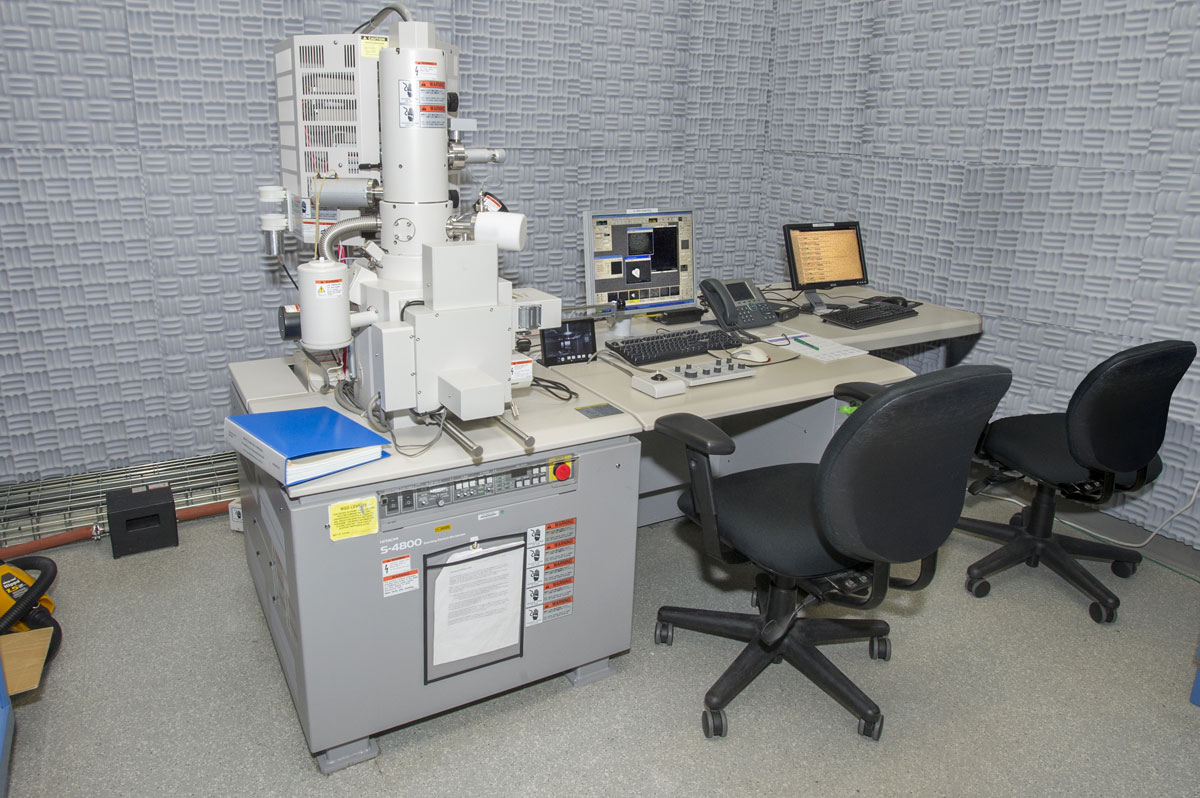

This scanning electron microscope (Hitachi 4800 SEM) is a cold field emission instrument capable of 1.5 nm resolution at 15 kV and 2.5 nm resolution at 1 kV. A "below-the-lens" design and large sample chamber port permits samples as large as 100 mm diameter  17 mm thick. Available imaging modes include secondary and backscattered electron imaging. There are two secondary electron detectors; one above the objective lens, the other below.

Manufacturer: Hitachi 4800

Equipment Catalog

Scanning Electron Microscope (SEM)

Contact

Gwen Wright
