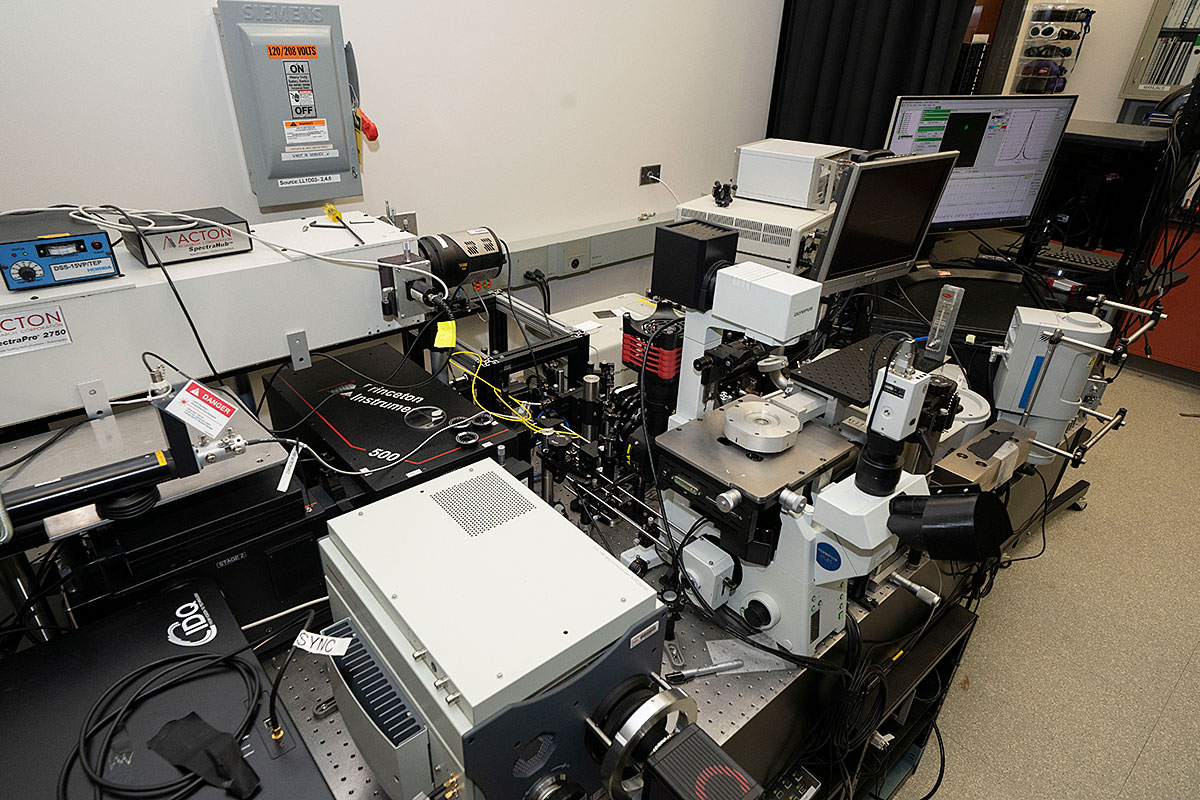

Time and Spectrally Resolved Confocal Photoluminescence and Electroluminescence Microscope

Facility Advanced Optical Spectroscopy and MicroscopyCategory Optical Microscopy Full Catalog

Olympus IX81 inverted microscope with objective scanning stage, various high NA objective lenses, Si-based single photon counting detectors (400-1100nm range) and InGaAs photon counting detector (900nm-1650nm) for time-resolved PL imaging and probing, including single photon source characterization. Uses an Acton SP2750-Pixis100 spectrograph/CCD system for micro-PL spectroscopy (400-1100nm range). Equipped with a micro-cryostat for low temperature (4.5K) imaging.  Available laser excitations are pulsed 442nm, 532nm at various repetition rates. For time and spectrally resolved electroluminescence measurements,  a 600 ps impulse current generator is used.

Manufacturer: Olympus IX81
