Observing Structural Changes In Sub-nm Catalysts In Action

What is the scientific achievement?

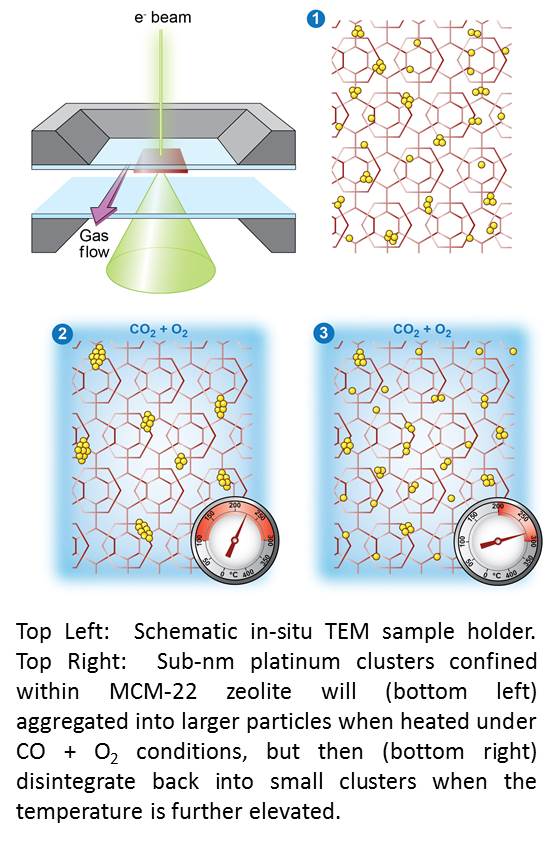

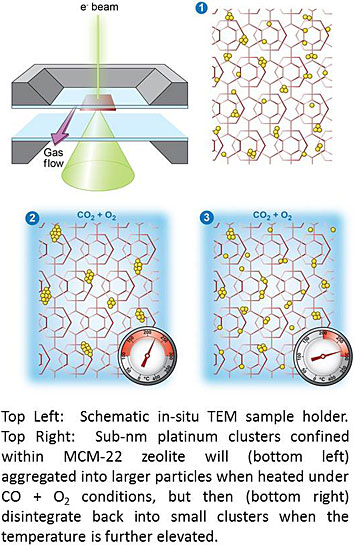

This work investigated the structural evolution of sub-nanometer Pt species confined within MCM-22 zeolites using in-situ transmission electron microscopy. The Pt species undergo dynamic structural transformations under reaction conditions in CO2 + O2 gas environments, aggregating into larger clusters when heated, but disintegrating back into smaller clusters upon further heating to higher temperatures.

Why does this achievement matter?

Observing dynamic structural transformations of sub-nm metal species under reaction conditions is helpful for understanding catalytic phenomena and for developing more efficient/stable catalysts based on single atoms and clusters.

What are the details?

Understanding the behavior and dynamic structural transformation of subnanometric metal species under reaction conditions will be helpful for understanding catalytic phenomena and for developing more efficient and stable catalysts based on single atoms and clusters. In this work, the evolution and stabilization of subnanometric Pt species confined in MCM-22 zeolite has been studied by in situ transmission electron microscopy (TEM). By correlating the results from in situ TEM studies and the results obtained in a continuous fix-bed reactor, it has been possible to delimitate the factors that control the dynamic agglomeration and redispersion behavior of metal species under reaction conditions. The dynamic reversible transformation between atomically dispersed Pt species and clusters/nanoparticles during CO oxidation at different temperatures has been elucidated. It has also been confirmed that subnanometric Pt clusters can be stabilized in MCM-22 crystallites during NO reduction with CO and H2.

CFN Capabilities

In-situ TEM studies were performed using CFN electron microscopy facilities.

Publication Reference

Lichen Liu, Dmitri N. Zakharov, Raul Arenal, Patricia Concepcion, Eric A. Stach, and  Avelino Corma, Evolution and stabilization of subnanometric metal species in confined space by in situ TEM, Nature Communications 9, 574 (2018).

DOI: 10.1038/s41467-018-03012-6

Acknowledgement of Support

This work has been supported by the European Union through the European Research Council (grant ERC-AdG-2014-671093, SynCatMatch) and the Spanish government through the “Severo Ochoa Program” (SEV-2016-0683).  The in situ TEM experiments were performed in the Center for Functional Nanomaterials, which is a US DOE Office of Science User Facility, at Brookhaven National Laboratory under contract number DESC0012704. The HAADF-HRSTEM studies have been conducted in the Laboratorio de Microscopias Avanzadas (LMA) at the Instituto de Nanociencia de Aragon (INA)-Universidad de Zaragoza (Spain), Spanish ICTS National facility.  R.A. gratefully acknowledges the support from the Spanish Ministry of Economy and Competitiveness (MINECO) through project grant MAT2016- 79776-P (AEI/FEDER, UE).
