Solving the Mystery of Fast Ion Transport in Batteries

distorted lithium polyhedra

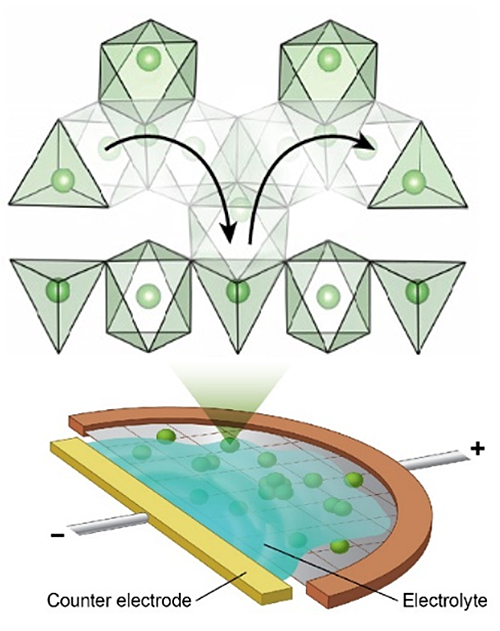

(Bottom) An electrochemically functional cell operated inside the transmission electron microscope tracks fast lithium-ion migration in a battery anode; which is enabled by distorted lithium polyhedra in the material (top).

What is the scientific achievement?

A collaborative team of scientists at Brookhaven Lab and UC Berkeley/Berkeley Lab used operando electron microscopy and computational modeling to observe and understand the underlying reasons that lithium titanate battery electrodes can support rapid charging and discharging.  Spectroscopy measurements and supporting calculations show that this advantageous anode behavior is enabled by  distorted lithium polyhedra in metastable intermediates during battery operation.

Why does this achievement matter?

This work provides a new understanding for designing fast-charging battery materials.  A high-rate capability can be designed by accessing metastable structures above the ground state, which can have different kinetic mechanisms.

What are the details?

Fast-charging batteries typically use electrodes capable of accommodating lithium continuously by means of solid-solution transformation because they have few kinetic barriers apart from ionic diffusion. One exception is lithium titanate (Li4Ti5O12), an anode exhibiting extraordinary rate capability apparently inconsistent with its two-phase reaction and slow Li diffusion in both phases. Through real-time tracking of Li+ migration using operando electron energy-loss spectroscopy, we reveal that facile transport in Li4+xTi5O12 is enabled by kinetic pathways comprising distorted Li polyhedra in metastable intermediates along two-phase boundaries. Our work demonstrates that high-rate capability may be enabled by accessing the energy landscape above the ground state, which may have fundamentally different kinetic mechanisms from the ground-state macroscopic phases. This insight should present new opportunities in searching for high-rate electrode materials.

CFN Capabilities

The CFN Theory and Computation Facility was used to model the Li K-edge electron energy loss spectroscopy (EELS) spectra and to calculate the energy barriers for ionic transport.

Publication Reference

Zhang, D.-H. Seo, T. Chen, L. Wu, M. Topsakal, Y. Zhu, D. Lu, G. Ceder, F. Wang, Kinetic pathways of ionic transport in fast-charging lithium titanate, Science 367, 1030 (2020).

DOI: 10.1126/science.aax3520
