Peering at Dynamic Perimeters that Promote Catalytic Activity

August 31, 2021

enlarge

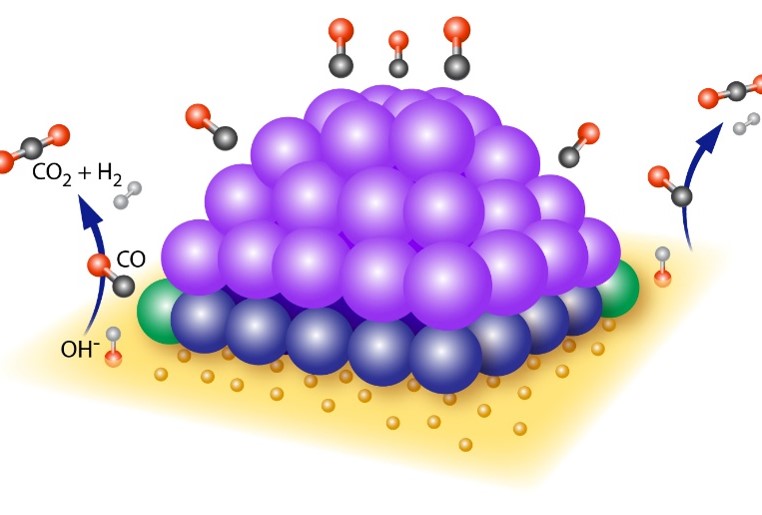

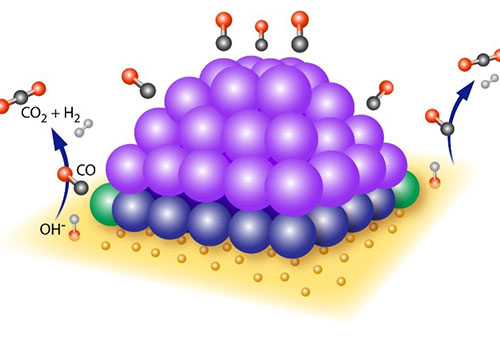

Schematic of the active platinum (Pt)/ceria structure at high temperature. Purple spheres: metallic Pt atoms; blue spheres: oxidized (2+) Pt atoms; green spheres: active perimeter Pt sites.

What is the scientific achievement?

CFN users and staff experimentally determined the mechanism by which ceria-supported platinum (Pt) catalysts facilitate the water-gas-shift reaction. Multimodal in situ and ex situ characterization under working conditions illuminate the dynamic changes driving catalytic activity. These measurements showed that the reaction is catalyzed at the perimeter of the Pt-ceria interface at high temperature, with missing oxygen atoms in the ceria also involved in forming the dynamic active site.

Why does this achievement matter?

Oxide-supported precious metal catalysts are of interest for the industrially important water-gas shift reaction to produce hydrogen because of their low-temperature activity, selectivity, and stability. Knowing which sites enable the reaction to proceed can inform the design of catalysts with higher activity at lower cost.

What are the details?

Oxide-supported noble metal catalysts have been extensively studied for decades for the water-gas shift (WGS) reaction. This reaction, in which carbon monoxide and water are transformed into carbon dioxide and hydrogen gas, is an important step in producing and purifying hydrogen for various applications—including as a clean fuel in fuel-cell vehicles and to synthesize hydrocarbons and ammonia. Among WGS reaction catalysts, ceria-supported noble metal (platinum and gold) catalysts have recently been heavily investigated. However, the identity of the active species/sites of these catalysts has been widely debated. There remains considerable uncertainty as to how the specific features of the active-metal-support interfacial bonding—perhaps most importantly, the temporal dynamic changes occurring therein—serve to enable high activity and selectivity. An understanding of all parts of this complex interacting system (metal catalyst, support, adsorbates) at the atomic level is difficult to obtain without correlative, multimodal, in situ/operando modes of characterization.

The work combines multiple advanced microscopy and spectroscopy techniques available at Brookhaven and Argonne National Laboratories to reveal the dynamic nature of active platinum (Pt) sites in ceria-supported Pt (Pt/CeO₂) nanoclusters at the atomic level. In situ infrared spectroscopy identified the active Pt species, while combined in situ transmission electron microscopy (TEM), diffuse reflectance infrared Fourier-transform spectroscopy (DRIFTS), ambient-pressure x-ray photoelectron spectroscopy (AP-XPS), and x-ray absorption spectroscopy (XAS) revealed the nature of the active site: Pt⁰−O vacancy−Ce^3+. Our results reveal the synergistic effects of metal-support bonding at the perimeter region. We find that the perimeter Pt⁰−O vacancy−Ce³⁺ sites formed in the active structure are transformed at working temperatures and regulate the adsorbate behaviors. The dynamic nature of these perimeter sites is a key mechanistic step for the WGS reaction. Understanding how these dynamic changes are connected to reactivity will inform the targeted design of higher-activity catalysts that use less of the expensive precious metals.

CFN Capabilities

The CFN Electron Microscopy Facility was used for in situ transmission electron microscopy.

Publication Reference

Y. Li, M. Kottwitz, J.L. Vincent, M.J. Enright, Z. Liu, L. Zhang, J. Huang, S.D. Senanayake, W-C.D. Yang, P.A. Crozier, R.G. Nuzzo, and A.I. Frenkel. “Dynamic structure of active sites in ceria-supported Pt catalysts for the water gas shift reaction,” Nature Communications 12, 914 (2021).

DOI: https://doi.org/10.1038/s41467-021-21132-4
OSTI: https://www.osti.gov/biblio/1766166-dynamic-structure-active-sites-ceria-supported-pt-catalysts-water-gas-shift-reaction

Brookhaven Lab news release: “Study Reveals Platinum’s Role in Clean Fuel Conversion”
