Automated Liquid Handling
Robotic instrumentation for sample synthesis and characterization

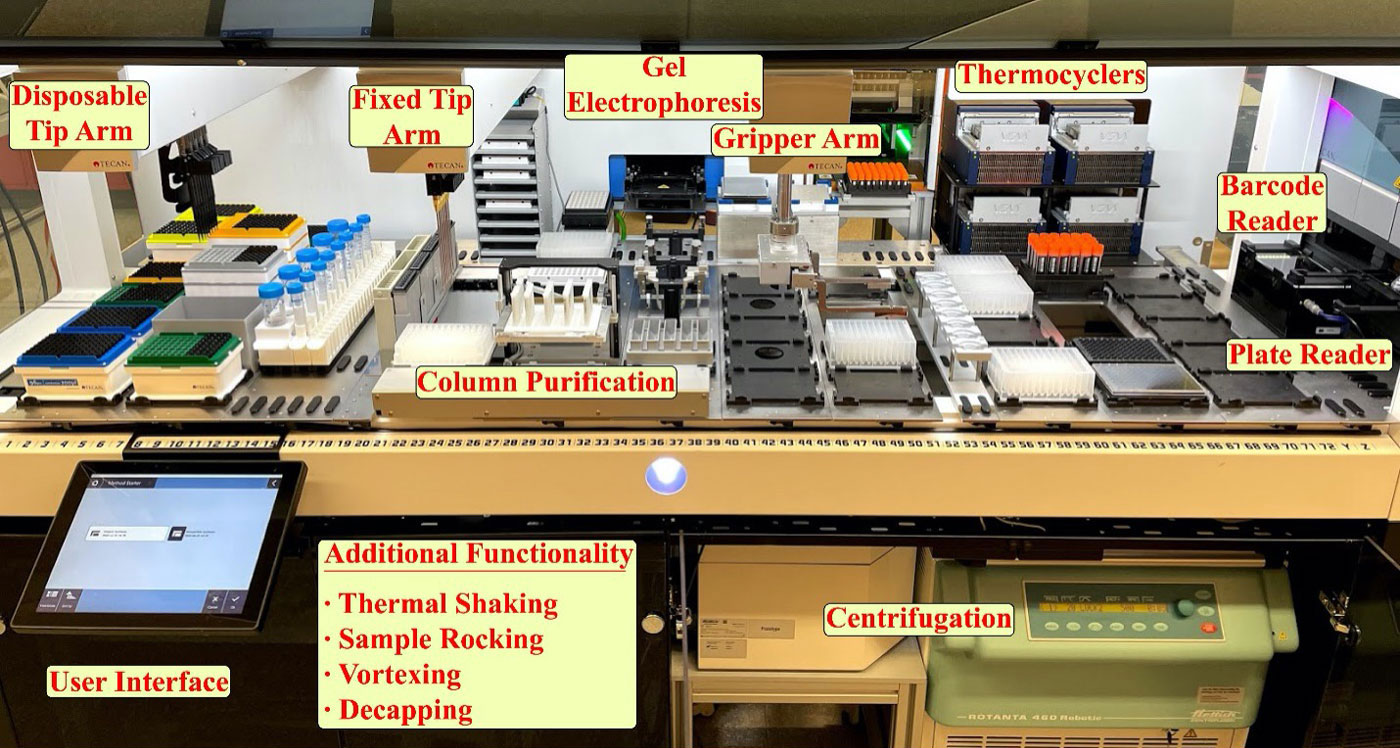

The automated liquid handler at the Center for Functional Nanomaterials combines synthesis, purification, and characterization of materials through coupling an ecosystem of instrumentation with a versatile liquid handler (Tecan Fluent 1080). Workflow on this one-of-kind robot can be customized to the material sets and needs of the user, including user-defined AI-guided and closed-loop experimentation. As a resource for both high-throughput experimentation and workflow or assay standardization, its customized setup allows users to produce and characterize materials in a controlled, consistent, and timely manner. It has three arms – two for liquid handling and the other for the transfer and handling of different classes of labware. Liquid-handler workflows can be connected to additional research instruments and expertise found at CFN and can evolve to incorporate new synthesis and characterization tools, encouraging collaborative research.
Connected Instrumentation
Disposable Tip, Air Flexible Channel Arm (aFCA)
Ideal for the preparation and distribution of samples and controls, the Air FCA's interdependent pipetting channels can access any tube or well configuration, with automatic adjustment of tip-spacing between labware formats. High-definition liquid handling and air displacement technology ensures precision and accuracy over a wide dynamic range, from sub-microliter to milliliter volumes. Patented Adaptive Signal Technology precisely detects even small volumes, enables accurate monitoring of liquid, and allows the use of smaller reagent and sample volumes for dramatic cost savings. Each pipetting channel is protected by an inline filter that prevents liquid being drawn into the channel. The eight independent channels are equipped with disposable tips and a low disposable ejection option to eliminate splashing or aerosol during tip ejection.
Fixed Tip, Liquid Flexible Channel Arm (liq FCA)
Ideal for the preparation and distribution of samples and controls, the FCA's interdependent pipetting channels can access any tube or well configuration, with automatic adjustment of tip-spacing between labware formats. High-definition liquid handling ensures precision and accuracy over a wide dynamic range, from sub-microliter to milliliter volumes. Patented Adaptive Signal Technology precisely detects even small volumes, enables accurate monitoring of liquid, and allows the use of smaller reagent samples volumes as well as viscous solutions.
Robotic Gripper Arm (RGA)
Robotic gripper arm used to pick and transfer objects within the working area of the Fluent. It can be equipped with dedicated gripper fingers for rapidly moves plates between logistical and processing devices without interrupting the pipetting process. It smoothly and quickly delivers labware to pipetting arms and integrated devices.
- 360° continuous rotation
- Various Gripper Options
- Eccentric
- Centric
- Tube Grippers
Plate Centrifuge
Hettich Rotanta 460 Robotic, Refrigerated
- The centrifuge is mounted under the worktable. It can be loaded and unloaded with the robotic gripper arm. Temperature range: +6°C to +40°C.
Maximum RPM: 6,200 min-1 (6,446 g) with a 4–place swing-out rotor. - Max Samples: 4 plates
Tube Centrifuge
Mikro 220 Robotic, air-cooling, Max RCF: ~18,500
- The centrifuge is mounted under the worktable. It can be loaded and unloaded with the robotic gripper arm.
- Maximum RPM: 13,00 min-1 (18,516 g), Max Samples: 24
TE-Chrom Segment
Batch elution or fraction collection. Suitable for applications such as bioprocessing, method development, condition screening, resin screening, step gradient elution, sample prep for mass spec, binding studies, sample concentration and PAT. Currently in use with OPUS Robocolumns from Repligen.
Tilting Carrier
Tilting angle: adjustable between 0° and 40°; tilting speed: adjustable
Ziath DataPaqTM Express
The Ziath DataPaqTM Express Rack Reader is a 2D datamatrix tube camera reader with an image capture time of only one second. Compatible with all 2D barcoded tube racks in SBS format, the DataPaqTM Express is the smallest rack scanner currently available. Its camera based instrument delivers rapid imaging and decoding.
- Scan all makes of 2D barcoded tubes
- Export data to Excel, Text, XML, JSON and Database
- Essential tool for sample tracking
Coastal Genomics Lightbench
The ability to accomplish gel size selection, fragment analysis and solution-based fluorescence assays with a single piece of equipment.
Integration of the LightBench with partnering automation affords users turnkey automation of assay setup and execution.
FluidXTM IntelliXcapTM 48
IntelliXcap 48 is the fastest capper and decapper system in the industry that will work with multiple sample storage tube types from a range of tube manufacturers.
The only 48-format full rack capper and decapper capable of decapping a complete rack of 48 tubes in as little as 20 seconds
On Deck Thermal Cycler-ODTC®
Most compact end-point PCR cycler for the use on automated liquid handling workstations.
- 96 well plate format
- Temperature range thermal block: +4°C to +99°C
- Temperature range heated lid: +5K to +115°C
- Maximum average heating rate: 4.4 K/sec
- Maximum average cooling rate: 2.2 K/sec
- Temperature accuracy: ± 0.3°C at 55°C
- Temperature uniformity: ± 0.2°C at 72°C, even with asymmetrical loading of the PCR plate
- Free programmable temperature profiles and lid temperature
- Horizontally opening heated lid, no interference with gripper and pipetting head
- Automated adjustment of lid pressure for different disposables and sealing options
Thermoshake Microplate Shaker (2 shakers on worktable)
The unit shakes from 100 to 2000 rpm, with an amplitude of 2 mm, ideal for 96, 384, and 1536 microtiter plates. It has an automatic slow start-up which avoids spillage.
- Heats to 70°C and cools to 4°C
- Accepts SBS listed microtiter plates
- Precise temperature control ±0.1°C
CPAC Ultraflat (1 unit on worktable)
CPAC (Cold Plate Air Cooled) devices are compact all-in-one heating & cooling blocks for microplates, tubes or reservoirs for the integration into robotic workstations.
- Temperature range +4°C to +110°C
- Capacity to change temperature within minutes
Heidolph Vortex
Vibration frequency up to 2,500 rpm and orbit of 5 mm.
Vial Gripper
The capper/decapper is a device that when commanded will hold a vial in position for capping or uncapping. The grip of the fixture is adjustable to prevent damage to sensitive vials. The fixture is designed to accommodate 15mL and 50mL tubes.
Tecan Spark Plate Reader
Capable of UV/Vis spectroscopy and fluorescence measurements.
- Absorbance (UV-VIS) mode: fully tunable wavelengths and spectral collection form 200-1000 nm in 1 nm increments
- Fluorescence mode:
- allows for measurements of fluorescence intensity, TRF, FRET, TR-FRET, and FP
- enhanced sensitivity with high energy Xenon Lamp
- selectable bandpass on excitation and emission from 5-50 nm in all fluorescence modes
- fully tunable wavelengths and spectral collection from 230-900 nm in 1 nm increments
- General operation:
- Heating form ambient +4°C up to 42°C
- Plate shaking
BioTek Cytation 5 Imaging Multimode Reader
Currently not directly incorporated into liquid handler but can be included in workflows. Automated digital widefield microscopy with conventional multimode microplate reading.
- Compatible with 6- to 1536-well microplates, microscope slides, Petri and cell culture dishes, T25 cell culture flasks and counting chambers
- The instrument possesses bright-field (4X, 20X, 60X), fluorescence (4X, 20X, 60X), and phase-contrast (20X) imaging
- End point, time lapse, z-stack, and montage imaging methods
- Capable of laser autofocus to ensure consistent sample focus
- Conventional UV/Vis spectroscopy and fluorescence measurements with modifiable bandpass on excitation and emission. The instrument has a red-shifted PMT capable of spectral collection up to 900 nm in 1 nm increments
- Control plate shaking and temperature to 65°C with a 4-zone temperature control system, with the ability to set plate-lid temperature gradient to prevent condensation on plate lids/seals.

The automated liquid handler is driven by a customized Tecan Fluent 1080. The workbench has three robotic arms, specifically an 8 channel Air Flexible Channel Arm for disposable tip handling, an 8 channel Liquid Flexible Channel Arm with fixed tips for up to 5 mL liquid handling (capable of positive pressure and handling viscous solutions), and a robotic gripper arm with three finger options (eccentric, center, and tube grippers). All tips are capable of liquid level detection.
