NSRL User Guide

I. Beamline Hardware

Rail System

Access to the target room is through the Access Control System (Iris scanner and Key Tree, monitored by operators in the Main Control Room (MCR) via video camera) and the labyrinth. The target room is 20 feet by 20 feet. There are a set of rails that run parallel to the beam, but 13" below beam center.

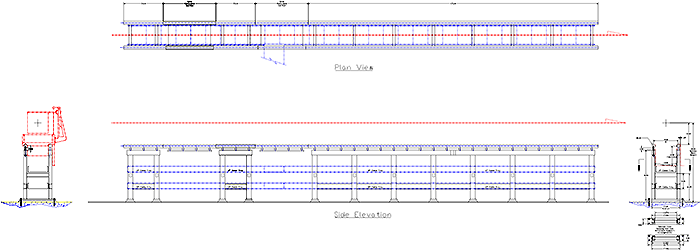

image of target table Download larger PDF
