NSRL User Guide: Biology Experiments
II. Operations
Simplified Galactic Cosmic Ray Simulation (SimGCRSim)
General Considerations
For some users, it is not necessary to irradiate the samples with the Full GCR Simulation, so we have prepared a Simplified GCR Simulation that uses only 6 beams and 5 different ions including protons at two different energies. Running the Simplified GCR Simulation requires about 20 minutes.

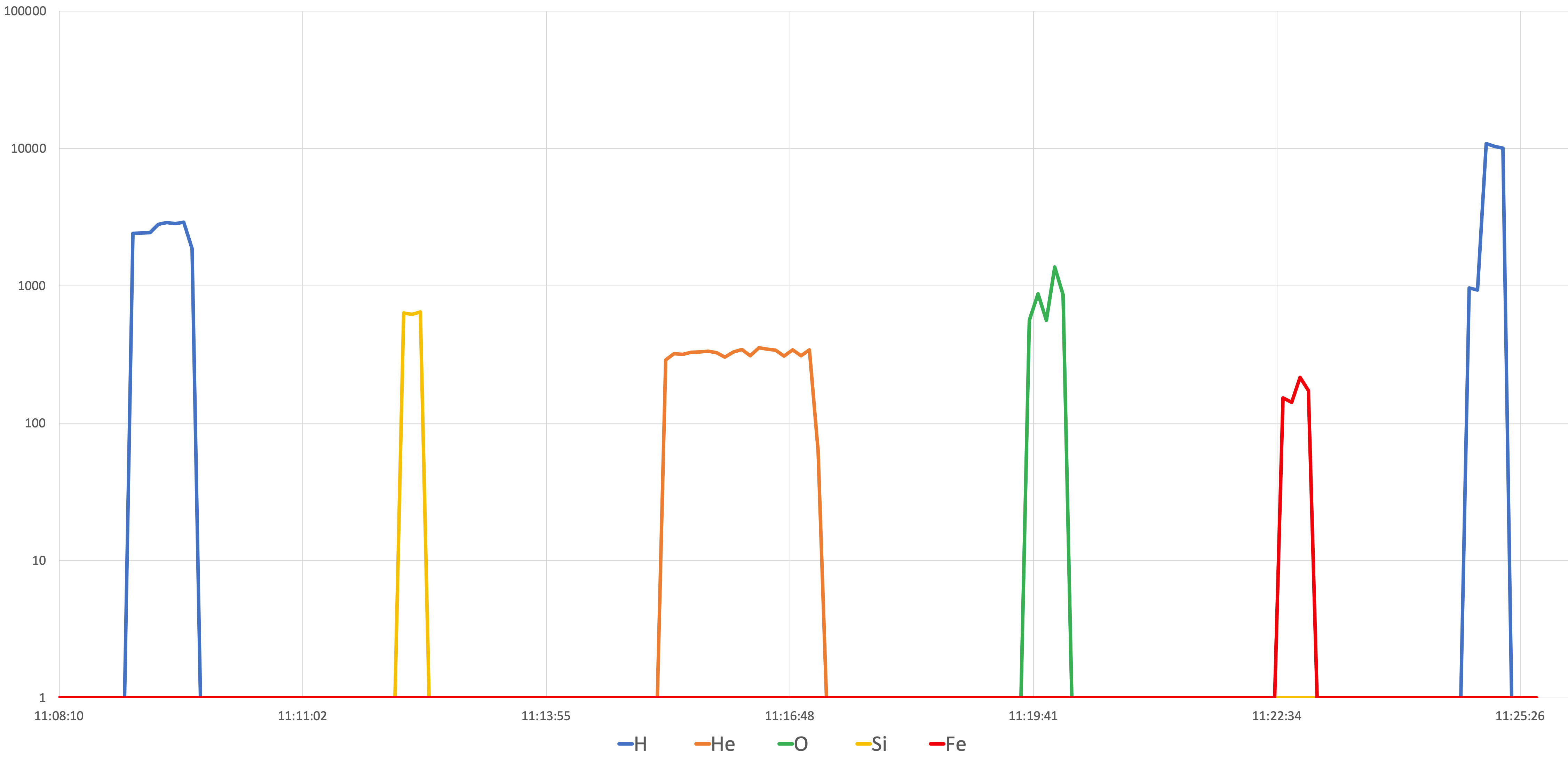

Definition of the Simplified GCR Simulation
In order of delivery
| Ion | Energy (MeV/n) | Fraction |
|---|---|---|
| H | 1000 | 35% |
| Si | 600 | 1% |
| He | 250 | 18% |
| O | 350 | 6% |
| Fe | 600 | 1% |
| H | 250 | 39% |
